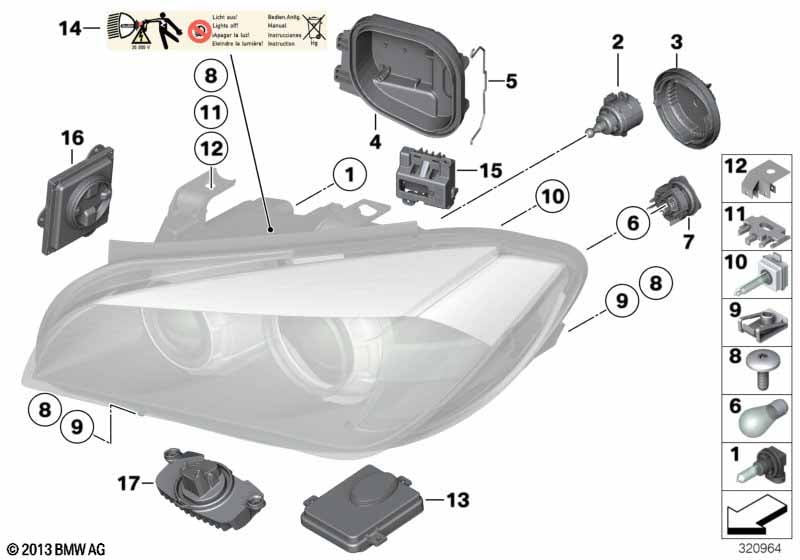

Einzelteile Scheinwerfer Xenon / ALC for BMW X1 E84 25dX
This Einzelteile Scheinwerfer Xenon / ALC technical drawing provides a detailed breakdown of the assembly for the X1 E84 25dX. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Glühlampe | H8 12V 35W | 2 | 07119906503 | Shop at ECS Tuning | |||||
| 02 | Leuchtweitenversteller | 2 | 63117046049 | $76.77 | Shop at ECS Tuning | |||||
| 03 | Abdeckkappe Scheinwerfer | 2 | 63122993424 | Shop at ECS Tuning | ||||||
| 04 | Abdeckkappe Fernlicht links | 1 | 63112993431 | Shop at ECS Tuning | ||||||
| 04 | Abdeckkappe Fernlicht rechts | 1 | 63112993432 | Shop at ECS Tuning | ||||||
| 05 | Haltebügel | 2 | 63126924671 | $3.05 | Shop at ECS Tuning | |||||
| 06 | Glühlampe Gelb | PY21W/12V/21W | 2 | 63217160791 | $5.58 | Shop at ECS Tuning | ||||
| 07 | Lampenfassung | PY21W | 2 | 63117393855 | Shop at ECS Tuning | |||||
| 08 | Torxschraube | ISA M6X18 SW | 8 | 07146959923 | $0.55 | Shop at ECS Tuning | ||||
| 09 | Clipmutter | M6 | 4 | 41357060601 | $0.70 | Shop at ECS Tuning | ||||
| 10 | Lampe Xenon-Licht mit Zündteil | D1 12V 35W | 2 | 63217217509 | $212.43 | Shop at ECS Tuning | ||||
| 11 | Einstellelement Scheinwerfer | VALEO X | 2 | 63117168485 | $7.53 | Shop at ECS Tuning | ||||
| 11 | Einstellelement Scheinwerfer | VALEO Y | 2 | 63117168486 | $7.53 | Shop at ECS Tuning | ||||
| 12 | Reparaturlasche Valeo innen li. | 2 | 63117175227 | $37.30 | Shop at ECS Tuning | |||||
| 12 | Reparaturlasche Valeo innen re. | 2 | 63117175228 | $37.30 | Shop at ECS Tuning | |||||
| 12 | Reparaturlasche Valeo aussen li. | 2 | 63117175229 | $37.30 | Shop at ECS Tuning | |||||
| 12 | Reparaturlasche Valeo aussen re. | 2 | 63117175230 | $37.30 | Shop at ECS Tuning | |||||
| 13 | Steuergerät Xenon-Licht | 2 | 63117318327 | Shop at ECS Tuning | ||||||
| 14 | Aufkleber Xenon-Licht | 2 | 71237248266 | Shop at ECS Tuning | ||||||
| Für Fahrzeuge mit Adaptives Kurvenlicht |
S524A=Ja |
|||||||||
| 15 | Elektronikbox ALC uncodiert | 2 | 63117180829 | $147.35 | Shop at ECS Tuning | |||||
| 16 | LED Hauptlichtmodul | 2 | 07/2012 | 63117342174 | Shop at ECS Tuning | |||||
| 17 | Satz LED Module links | 1 | 07/2012 | 11/2012 | 63117397245 | Shop at ECS Tuning | ||||
| 17 | Satz LED Module links | 1 | 11/2012 | 63117374597 | Shop at ECS Tuning | |||||
| 17 | Satz LED Module rechts | 1 | 07/2012 | 11/2012 | 63117397246 | Shop at ECS Tuning | ||||
| 17 | Satz LED Module rechts | 1 | 11/2012 | 63117374598 | Shop at ECS Tuning | |||||
