Power Plant for BMW 5 Series E34 525i (1995)

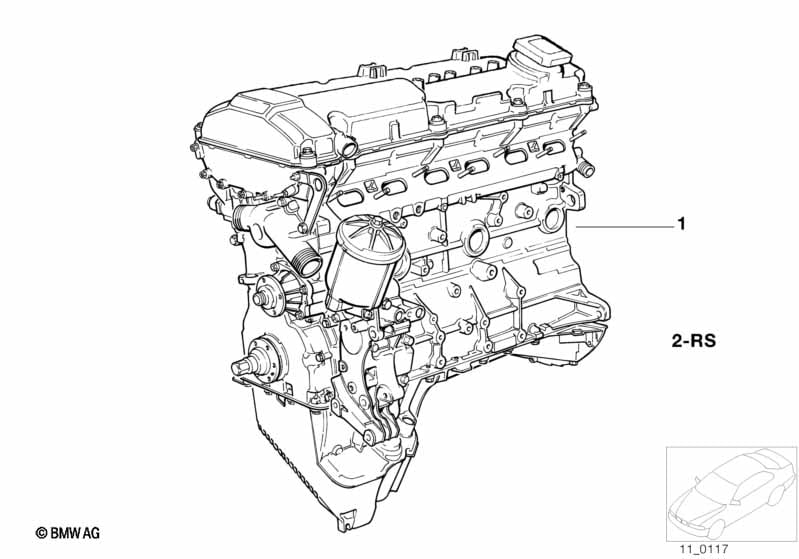

This Power Plant technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Power Plant | 256S2 - VANOS | 1 | 09/1994 | 11009069461 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Exchange short engine | 256S2 - VANOS | 1 | 09/1994 | 11009069466 | $6322.76 | ENDED | Shop at ECS Tuning | ||
| 02 | Set Mounting Parts Short Engine | 1 | 11009067420 | $100.88 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
