Volume air flow sensor for BMW 3 Series E30 318i (1990)

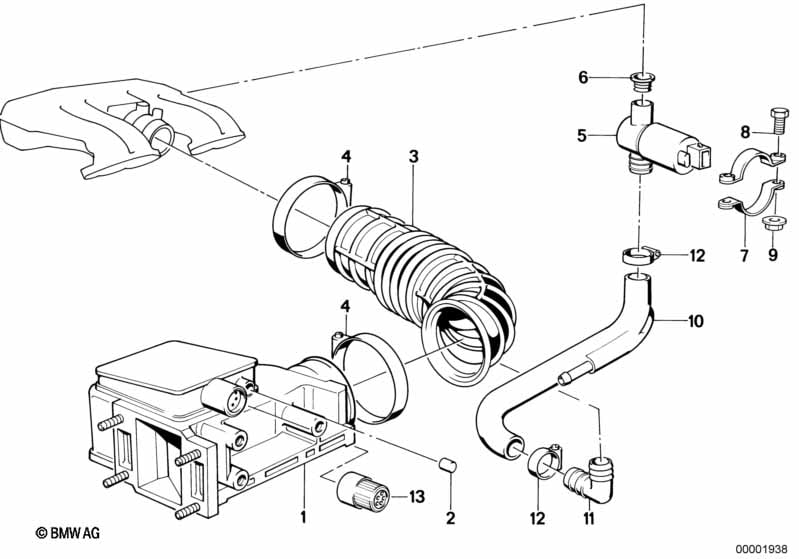

This Volume air flow sensor technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Air volume determinator with co-poti | 1 | 13627547980 | $580.29 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Adapter lead | SERVICE | 1 | 13621734516 | $238.07 | ENDED | Shop at ECS Tuning | |||
| 01 | Air volume determinator with co-poti | 1 | 13627547980 | $580.29 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Sealing frame | 1 | 13711705064 | $0.70 | Shop at ECS Tuning | |||||
| -- | Self-locking hex nut | M6 | 4 | 07147153450 | $0.47 | Shop at ECS Tuning | ||||
| For vehicles with without catalytic converter |
S199A=No |
|||||||||
| 01 | Hot film air mass meter w/ adapter cable | 1 | 13627558785 | $580.29 | Shop at ECS Tuning | |||||
| 02 | Cap | 1 | 13621363874 | $7.12 | ENDED | Shop at ECS Tuning | ||||
| 03 | Rubber boot | 1 | 13711709754 | $26.14 | Shop at ECS Tuning | |||||
| 04 | Hose clamp | L71-78 | 2 | 07129952129 | $1.48 | Shop at ECS Tuning | ||||
| 05 | T-shape idle regulating valve | 1 | 13411433627 | $218.55 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Rubber grommet | 1 | 13411247344 | $19.73 | Shop at ECS Tuning | |||||
| 07 | Clamp | 2 | 13411721112 | Shop at ECS Tuning | ||||||
| 08 | Hex Bolt with washer | M6X12-Z3-1 | 1 | 07119915033 | $1.07 | Shop at ECS Tuning | ||||
| 09 | Hex nut with plate | AM6-8-ZNNIV SI | 2 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
| 10 | Hose | 1 | 11631714527 | $51.60 | Shop at ECS Tuning | |||||
| 11 | Connector | 1 | 11151277301 | $1.60 | Shop at ECS Tuning | |||||
| 12 | Hose clamp | L15-19 | 2 | 07129952107 | $0.93 | Shop at ECS Tuning | ||||
| FOR ENGINE CABLE HARNESS | ||||||||||
| 13 | Plug housing | 7 POL. | 1 | 12521718126 | $5.57 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Protection cap | 1 | 12521711262 | $3.22 | Shop at ECS Tuning | |||||
