3' E30 318i ZF 3hp22 housing parts/lubricat.system

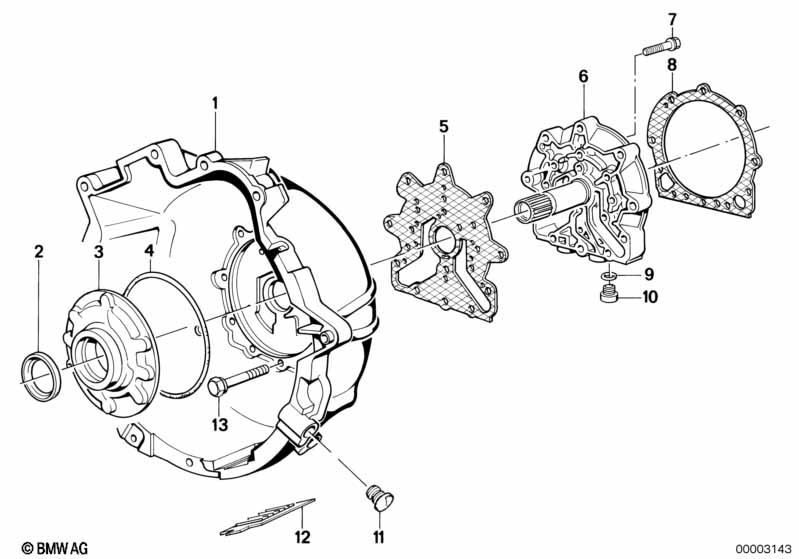

ZF 3hp22 housing parts/lubricat.system
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Converter housing 1 24111215238 $608.22 ENDED
02 Shaft seal 40X52X7 1 24311422671 $11.45
03 Oil pump 1 24311207748 $323.81 ENDED
04 O-ring 128X3 1 24201217321 $9.32
05 Gasket Asbestos Free 1 24401215639 $4.10 ENDED
06 Intermediate plate assy 1 24401215340 $327.14 ENDED
07 Hex Bolt with washer M8X55-Z3 X 07119912601 ENDED
08 Gasket Asbestos Free 1 24111215638 $4.78 ENDED
09 Gasket ring A10X13,5-CU 2 07119963072 $0.11
10 Screw plug M10X1 2 24111207605 $2.86
12 Protection grid f additional fan 1 24401206042 $3.02 ENDED
13 Hex Bolt with washer M6X28-Z3 9 05/1987 07119915048 ENDED
13 Hex Bolt with washer M6X28-Z3 9 07119915183 ENDED
13 Hex Bolt M6X28-8.8-ZNS 9 07119913021 $2.30
only in conjunction with
-- Wave washer B6 1 07119932099 $0.38
Notes
  • ENDED = the part has been discontinued (no longer available).
