3' E30 318i ZF 3hp22 drive clutch A

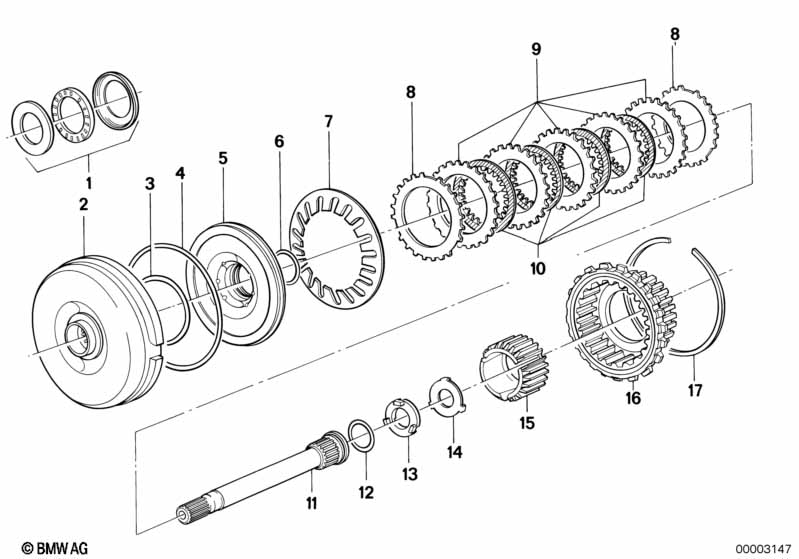

ZF 3hp22 drive clutch A
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 AX bearing 1 24231209808 $10.92
02 Cylinder 1 24211206821 ENDED
03 O-ring 1 24231206823 $5.26
04 O-ring 1 24231217083 $10.11 ENDED
05 Piston 1 24231206884 $54.13 ENDED
06 O-ring 1 24231205913 $2.92 ENDED
07 Diaphragm spring 1 24231206824 $12.63
08 Tensioned disk 2 24231205919 $9.60
09 Outer disc 5 24231218784 $5.96
10 Clutch disc 4 24239059361 $11.95
11 Drive Shaft 1 24211205906 $227.66 ENDED
12 O-ring 1 24341422152 $1.59
13 Stop disc 1 24231205923 $1.91 ENDED
14 Stop disc 1 24231205924 $1.27 ENDED
15 Disc carrier 1 24231205925 $85.10 ENDED
16 Disc carrier 1 24231421551 $96.46 ENDED
17 Snap ring 1 24231217134 $1.33 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
