3' E30 318i ZF 3hp22 drive clutch B

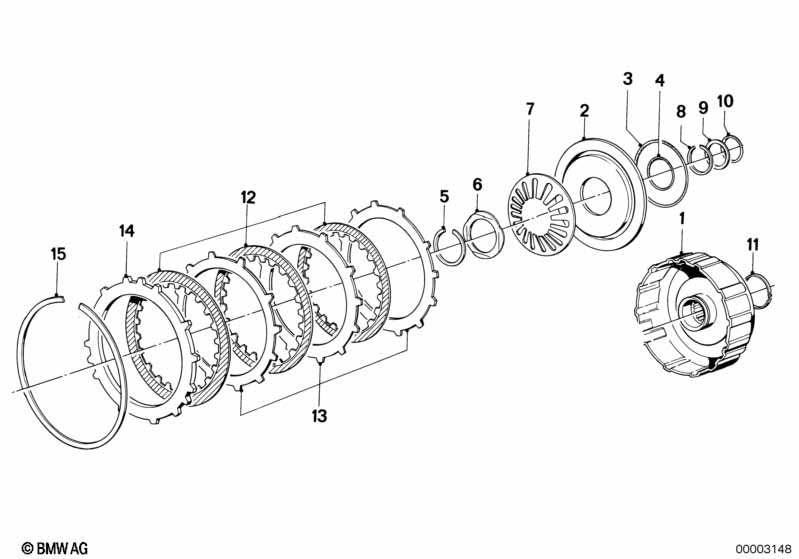

ZF 3hp22 drive clutch B
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Cylinder 1 24231216987 $95.98 ENDED
02 Piston 1 24231217309 $41.01 ENDED
03 O-ring 1 24231215448 $9.49 ENDED
04 O-ring 1 24231205913 $2.92 ENDED
05 Snap ring 1 24231205932 $1.42 ENDED
06 Circlip 1 24231205931 $1.73
07 Diaphragm spring 1 24231205930 $8.85 ENDED
08 Snap ring 1 24231205934 $0.84
09 backup ring 1 24231215423 $1.00 ENDED
10 O-ring 1 24341422152 $1.59
11 Rectangring 1 24231215980 $12.19
12 Clutch disc 3 24231215770 $12.49
13 Outer disc 3 24231205935 $20.51
14 Disc 1 24231205937 $27.82 ENDED
15 Snap ring 1 24231217134 $1.33 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
