3' E30 318i ZF 3hp22 brake clutch D

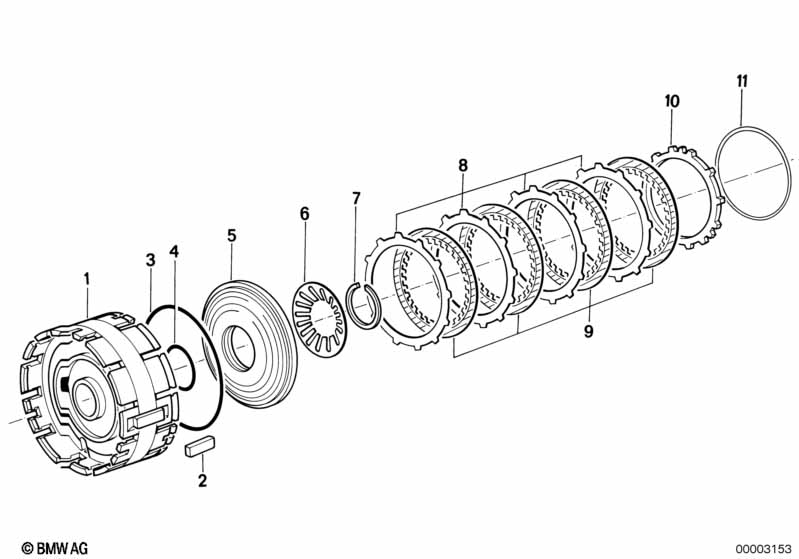

ZF 3hp22 brake clutch D
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Cylinder 1 24239065580 $145.08 ENDED
02 Spring 2 24231206105 $1.13 ENDED
03 O-ring 1 24231218761 $14.71
04 O-ring 1 24231206106 $3.62
05 Piston 1 24231205951 $36.27 ENDED
06 Diaphragm spring 1 24231205954 $8.85 ENDED
07 Snap ring SP50 1 07119933304 ENDED
08 Outer disc 3 24231205935 $20.51
09 Clutch disc 3 24231205955 $15.24
10 Disc 1 24231205956 $39.06 ENDED
11 Snap ring D=153MM 1 24231205957 $1.95 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
