3' E30 318i ZF 3hp22 mounting parts control unit

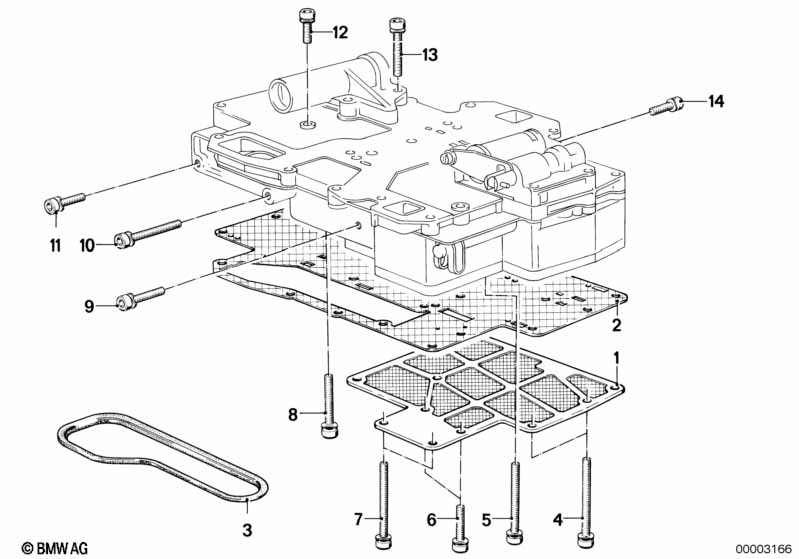

ZF 3hp22 mounting parts control unit
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Oil strainer 1 24341209747 $25.53
02 Gasket Asbestos Free 1 24341216173 $2.64
03 Profile-gasket 1 24341207039 $5.29
04 Fillister head screw M5X85 2 24341207608 $2.11 ENDED
05 Fillister head screw M5X75 3 24341207609 $2.42 ENDED
06 Torx bolt M5X50 3 24341207612 $1.18
07 Fillister head screw M6X83 7 24341207606 $3.14 ENDED
08 Fillister head screw M6X45 5 24341207607 $0.96 ENDED
09 Fillister head screw M5X30 1 24341207614 ENDED
10 Fillister head screw M5X45 1 24341207613 $0.63 ENDED
11 Fillister head screw M5X22 3 24341207616 ENDED
12 Torx bolt M5X25 2 24341207615 ENDED
13 Fillister head screw M5X55 4 24341207611 $1.12 ENDED
14 Fillister head screw M5X16 9 24341207617 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
