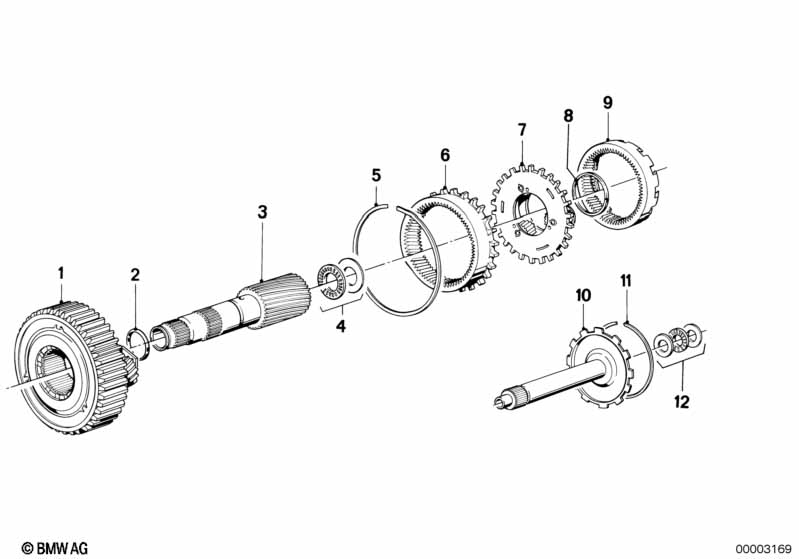

3' E30 318i ZF 3hp22 planet wheel set

ZF 3hp22 planet wheel set
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Planet wheel carrier 1 24221421743 $936.24 ENDED
02 O-ring 1 24341422152 $1.59
03 Sun shaft 1 24221219757 $205.90 ENDED
04 AX bearing 1 24241209806 $6.22
05 Snap ring D=122MM 1 24211205989 $6.33 ENDED
06 Hollow gear wheel,output Z=73 1 24241205958 $234.36 ENDED
07 Planet wheel carrier 1 24241205970 $369.07 ENDED
08 Rectangring 32,4X35,0X2,0 1 24241216358 $14.03
09 Hollow gear wheel,input Z=73 1 24241205960 $242.89 ENDED
10 Intermediate shaft 1 24241205963 $426.31 ENDED
11 Snap ring D=107MM 1 24241205964 $3.05 ENDED
12 AX bearing 1 24241209807 $5.23 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
