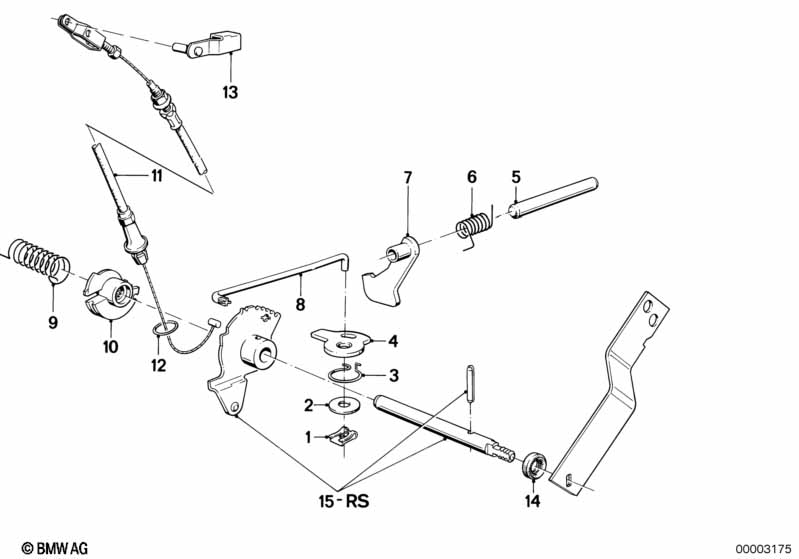

3' E30 318i ZF 3hp22 gear shift/parking lock

ZF 3hp22 gear shift/parking lock
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Lock Ring 1 24341206012 $1.44 ENDED
02 Washer 1 24341207289 $0.66 ENDED
03 Spring 1 24341206010 $1.44 ENDED
04 Locker cam 1 24341206714 $3.66 ENDED
05 Pin 1 24341206006 $1.66 ENDED
06 Retainer spring 1 24341206713 $1.04 ENDED
07 Pawl 1 24341206712 $26.37 ENDED
08 Connection rod 1 24341206001 ENDED
09 Retainer spring 1 24341206199 $4.88
10 Cam,accelerator 1 24341208433 ENDED
11 Accelerator bowden cable 1 09/1983 24341208749 $40.74
11 Accelerator bowden cable 1 09/1983 24341208749 $40.74
12 O-ring 1 24231215455 $1.81
14 Shaft seal 10X18X5 1 24147571213 $5.20
15 Repair kit selector rod 1 24341207059 $30.05 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
