3' E30 318i ZF 4hp22/24 brake clutch C

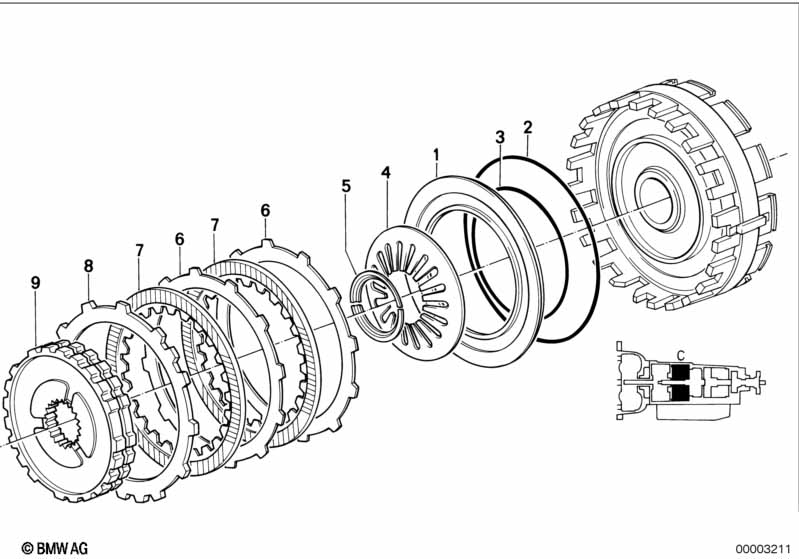

ZF 4hp22/24 brake clutch C
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Piston 1 24231205949 $64.58 ENDED
02 O-ring 1 24231218761 $14.71
03 O-ring 1 24311219062 $3.13
04 Diaphragm spring 1 24231205945 $11.44
05 Supporting ring 2 24231205946 $1.89
06 Outer disc 1 24231205935 $20.51
07 Clutch disc 1 24231215770 $12.49
09 Freewheel 2nd gear 1 24231205948 $337.10
Notes
  • ENDED = the part has been discontinued (no longer available).
