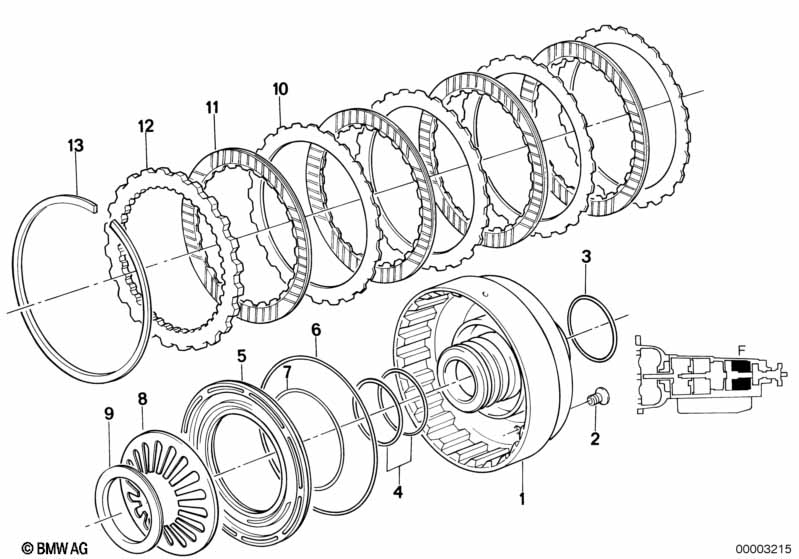

3' E30 318i ZF 4hp22/24 brake clutch f

ZF 4hp22/24 brake clutch f
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Cylinder 1 24231217089 $150.70 ENDED
02 Countersunk screw M6X15 X 24231215782 $1.77
03 Rectangring 3 24231217141 $6.48
04 Rectangring 2 24231217140 $12.19
05 Piston 1 24231215454 $68.85 ENDED
06 O-ring 1 24231215456 $2.49 ENDED
07 O-ring 1 24231215701 $2.85 ENDED
08 Diaphragm spring 1 24231215451 $11.44
09 Ring 1 24231219069 $7.79
10 Outer disc 3 24231215453 $19.21
11 Clutch disc 3 24231215441 $11.90
12 Disc 1 24231215452 $30.41
13 Snap ring 1 24231215438 $1.47 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
