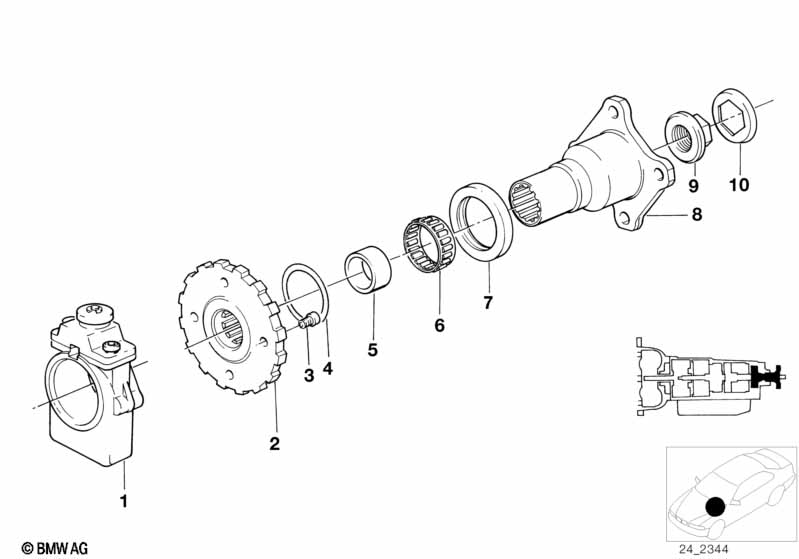

3' E30 318i ZF 4hp22/24-h output

ZF 4hp22/24-h output
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Voltage regulator 1 24231215460 $182.73
01 Voltage regulator 1 24231216155 $137.53 ENDED
02 Parking lock wheel 1 24341215472 $161.82 ENDED
03 Fillister head screw M6X17 2 24321217174 $0.71 ENDED
04 Spacer 1 24211215784 $1.65
05 Inner ring 1 24211215730 $40.73
06 Needle sleeve 35X42X12 1 24111218008 $14.67
07 Shaft seal 40X58X10 1 24111218009 $21.95
08 Output flange 1 24211215731 $210.18
09 Collar nut M20X1,5 1 23221201331 $6.99
10 Securing plate 1 23221201330 $2.33
Notes
  • ENDED = the part has been discontinued (no longer available).
