3' E30 318i ZF 4hp22/24-h control unit+attach.parts

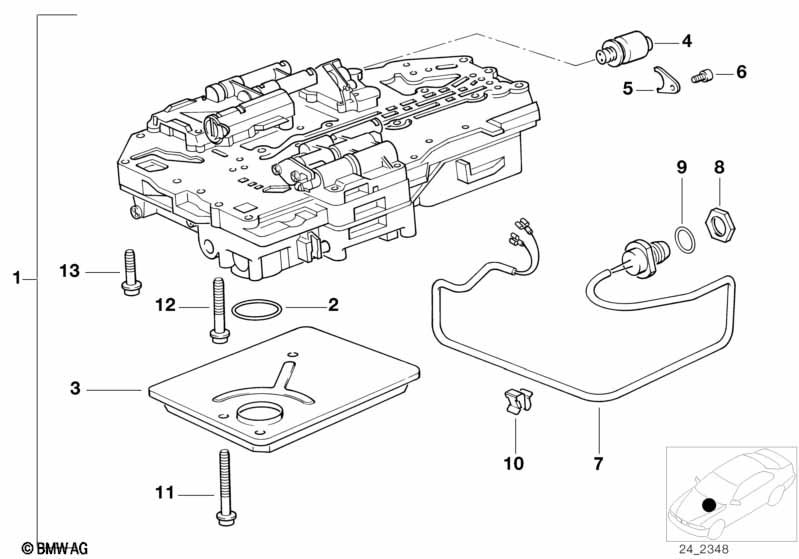

ZF 4hp22/24-h control unit+attach.parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Control unit 1 05/1985 24341215927 ENDED
01 Control unit 1 07/1985 24341216149 ENDED
02 O-ring 1 09/1989 24341217437 $1.79 ENDED
02 O-ring 1 09/1989 24311218570 $1.59
only in conjunction with
-- Oil strainer 1 09/1989 24311218550 $36.30
03 Oil strainer 1 09/1989 24341215544 ENDED
03 Oil strainer 1 09/1989 24311218550 $36.30
only in conjunction with
-- O-ring 1 09/1989 24311218570 $1.59
11 Fillister head screw M6X65 5 24341215492 $2.09
12 Torx bolt M6X60 3 24341422672 $2.66
13 Torx bolt M6X30 6 24341421078 $1.61
Notes
  • ENDED = the part has been discontinued (no longer available).
