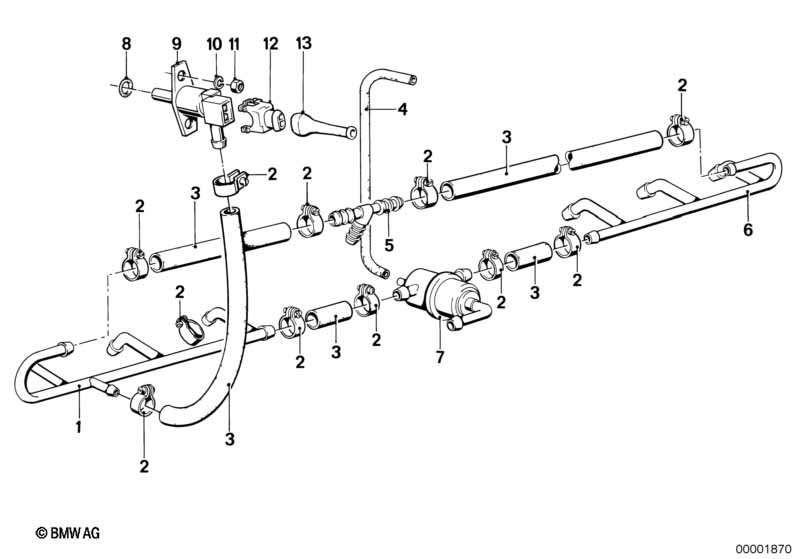

5' E12 530i Fuel injection L-jetronic

Fuel injection L-jetronic
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Fuel pipe 1st-3rd cylinder 1 13531261081 ENDED
02 Hose clamp L12-15 X 07129952104 $1.18
03 Fuel hose 8X13MM X 06/1996 13311722262 $12.20 ENDED
03 Fuel hose 8X13MM X 16121180409 $20.43
04 Vacuum hose black 3,3X1,75 X 51731257971 $4.59 ENDED
04 Vacuum hose black 3,3X1,8 X 11747797175 $13.51 ENDED
04 Vacuum hose black 3,5X1,8 X 11727545323 $14.82
05 Distribution piece 1 13311251059 $1.00
06 Fuel pipe 4th-6th cylinder 1 13531261082 $22.54 ENDED
07 Pressure regulator 1 13531260789 $128.16 ENDED
08 O-ring 6.5X2.0 1 11611254062 $1.33 ENDED
08 O-ring 6,3X2,4 1 07119903045 $1.67
09 Starter valve 1 13641358917 $106.30
10 Wave washer B6 2 07119932099 $0.38
10 Wave washer B6-ZNS3 2 07119904496 $1.78 ENDED
11 Hex nut M6 2 08/1996 23112322368 $0.38 ENDED
11 Hex nut M6-8-ZNS 2 07119922832 $0.37 ENDED
11 Hex nut M6-8-ZNNIV SI 2 07119905543 $0.38
12 Plug housing 2-POL 1 08/1978 12521706121 $5.77 ENDED
12 Plug housing 2 POL. 1 12521706091 $4.02
13 Protection cap L=12,5MM 1 61131358330 $5.33
Notes
  • ENDED = the part has been discontinued (no longer available).
