5' E28 520i Control unit L-jetronic

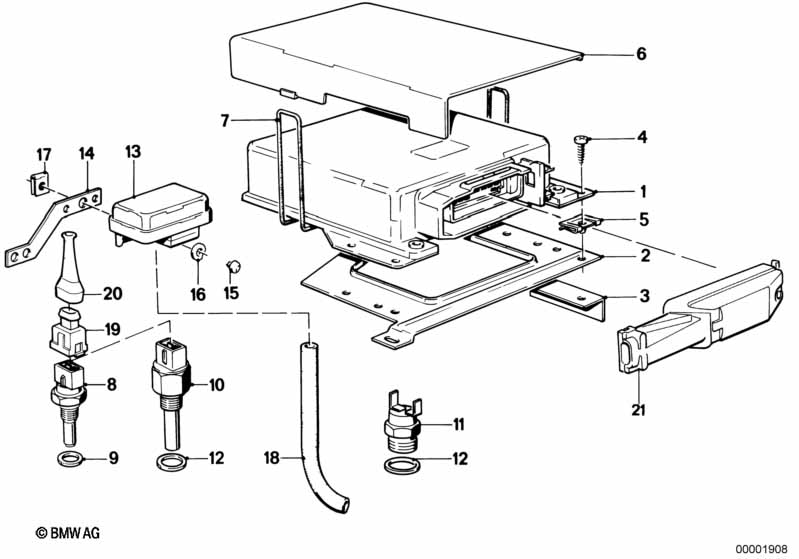

Control unit L-jetronic
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Control unit L-jetronic 25-POL 1 09/1984 13611287724 ENDED
01 Exchange control unit L-jetronic 25-POL 1 09/1984 13611706437 $789.57 ENDED
04 Hex head screw ST6,3X19-C 4 07119916830 $0.36
05 Nut holder M6-ZNS 4 08/2003 61211366389 $0.72 ENDED
05 C-clip nut M6-ZNS3 4 51127070202 $1.00
06 Covering cap 1 01/1984 13611279503 $2.72 ENDED
07 Rubber Ring 1 01/1984 63121351414 $2.46 ENDED
07 O-ring 100X4 1 01/1984 07119905680
08 Temperature sensor M12X1,5 1 09/1984 13621709966 $37.35 ENDED
08 Temperature sensor, water 1 09/1984 13621709967
09 Gasket ring A12X15,5 AL 1 07119963130 $0.09
12 Gasket ring A14X18-AL 1 07119963200 $0.38
19 Plug housing 2-POL X 06/1986 12521706121 $5.77 ENDED
19 Plug housing 2 POL. X 12521706091 $4.02
20 Protection cap L=12,5MM X 61131358330 $5.33
21 Plug housing 25POL 1 12521277176 $13.82 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
