Cooling system-fan/fan coupling for BMW 5 Series E28 518 (1981)

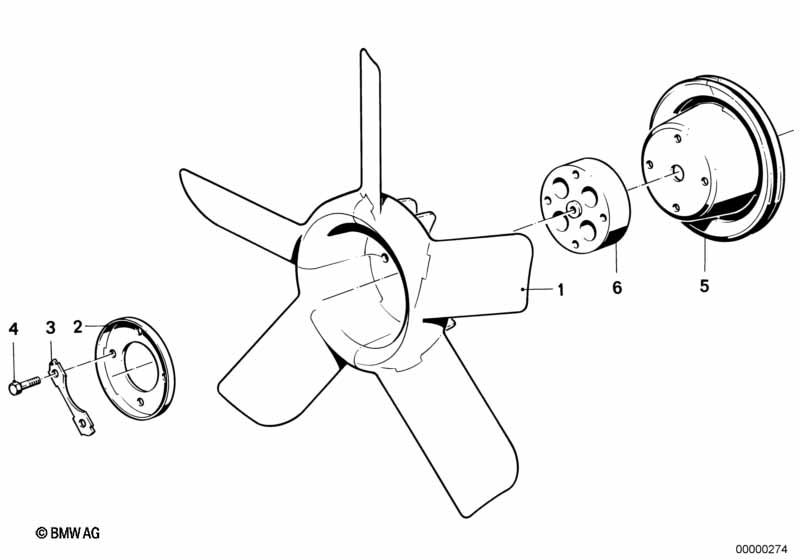

This Cooling system-fan/fan coupling technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 518. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fan | D=360MM | 1 | 04/1982 | 11521276454 | ENDED | Shop at ECS Tuning | |||
| 02 | Reinforcement | 1 | 04/1982 | 11531251824 | $2.00 | ENDED | Shop at ECS Tuning | |||
| 03 | Securing plate | 2 | 04/1982 | 11531251825 | $0.83 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M6X18 | 4 | 04/1982 | 23317545769 | $0.67 | Shop at ECS Tuning | |||
| 05 | Pulley | 1 | 04/1982 | 11511257384 | $33.65 | Shop at ECS Tuning |
