Cooling System Water Hoses for BMW 3 Series E30 325i
This Cooling System Water Hoses technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|

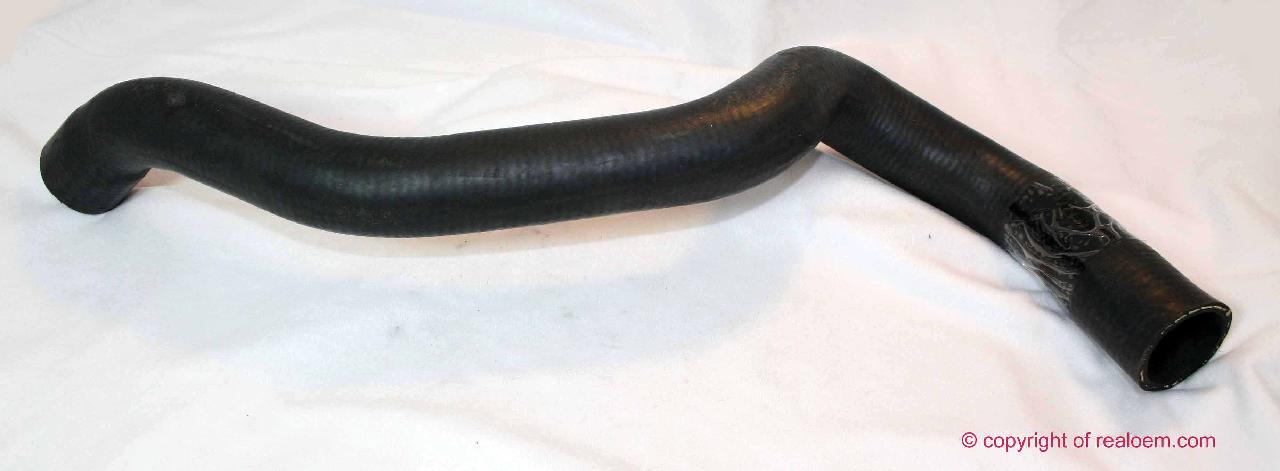

| 01 | Water hose | 1 | 09/1987 | 11531279895 | $37.84 | Shop at ECS Tuning | ||||
| 02 | Water hose | 1 | 09/1987 | 11531286914 | $23.28 | Shop at ECS Tuning | ||||
| 03 | Water hose | 1 | 09/1987 | 11531287651 | $37.73 | Shop at ECS Tuning | ||||
| 04 | Hose clamp | L42-48 | 4 | 09/1987 | 07129952119 | $1.15 | Shop at ECS Tuning | |||
| For vehicles with Air conditioning and Tropical version |
=Yes =Yes |
|||||||||
| 05 | Holder | 1 | 09/1987 | 11531279946 | $0.75 | Shop at ECS Tuning | ||||
| 06 | Washer | A6,4-ZNNIV SI | 1 | 09/1987 | 07119904202 | Shop at ECS Tuning | ||||
| 07 | Hex nut | M6-8-ZNNIV SI | 1 | 09/1987 | 07119905543 | $0.38 | Shop at ECS Tuning | |||
| 08 | Hose clamp | 1 | 09/1987 | 11531714433 | $2.39 | Shop at ECS Tuning | ||||
| 09 | Water hose | 1 | 09/1987 | 11531289257 | $22.09 | Shop at ECS Tuning | ||||
| 10 | Hose clamp | L32-38 | 2 | 09/1987 | 07129952115 | $1.27 | Shop at ECS Tuning | |||
| 11 | Clamp | D=28/6,4 | 1 | 09/1987 | 11531267334 | $1.61 | Shop at ECS Tuning | |||
| 12 | Spring washer Black | B6-ZN | 1 | 09/1987 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 13 | Hex bolt | M6X60 | 1 | 09/1987 | 07119902994 | Shop at ECS Tuning | ||||
| 14 | Water hose | 1 | 09/1987 | 13541705568 | $11.11 | Shop at ECS Tuning | ||||
| 15 | Water hose | 1 | 09/1987 | 13541289976 | $12.07 | Shop at ECS Tuning | ||||
| 16 | Hose clamp | L15-18 | 4 | 09/1987 | 11151727509 | $1.02 | Shop at ECS Tuning | |||
| 17 | Hose, inlet | 1 | 09/1987 | 64211380527 | $17.64 | Shop at ECS Tuning | ||||
| 18 | Return hose | 1 | 09/1987 | 11531289377 | $22.09 | Shop at ECS Tuning | ||||
| 19 | Hose clamp | L32-38 | 2 | 09/1987 | 07129952115 | $1.27 | Shop at ECS Tuning | |||
| 20 | Hose clamp | L16-30 | 2 | 09/1987 | 64218367179 | $1.07 | Shop at ECS Tuning | |||
| 21 | Clamp | D=28/6,4 | 2 | 09/1987 | 11531267334 | $1.61 | Shop at ECS Tuning | |||
| 21 | Bow | 1 | 09/1987 | 11531277934 | $3.15 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 325i Cooling System Water Hoses?
- This technical diagram illustrates the Cooling System Water Hoses within the Engine group for the 3 Series E30 325i. It provides a detailed exploded view of the components, identifying key parts such as the Water hose (Part #11531279895).
- Which models use the hardware listed in this Cooling System Water Hoses?
- The hardware and components featured in the Cooling System Water Hoses are specific to the 3 Series E30 325i. These technical specifications ensure that parts like the Water hose (11531279895) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cooling System Water Hoses assembly?
- Each item in the Cooling System Water Hoses corresponds to the numbered list below the illustration. For the 3 Series E30 325i, you can identify the Water hose by locating its position on the schematic, which then links to the official BMW part number 11531279895 for the Engine section.
