Intake manifold system for BMW 5 Series E39 535i (1997)

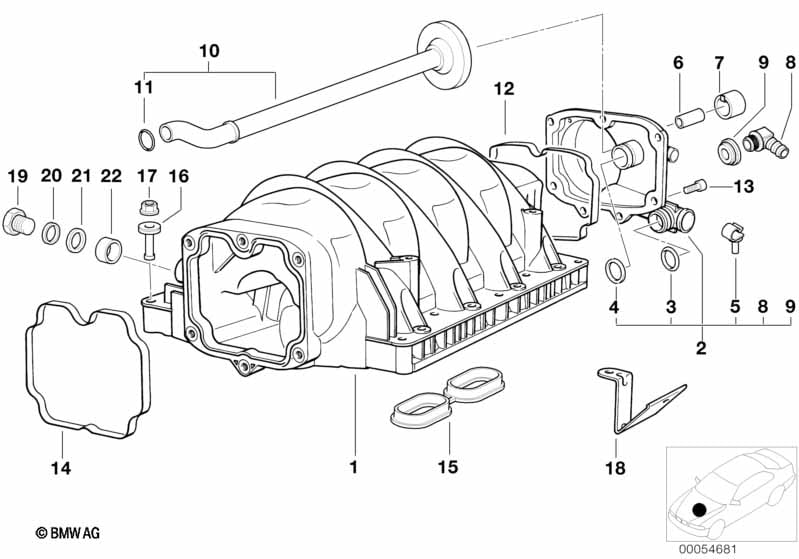

This Intake manifold system technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1997.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Intake manifold | 1 | 09/1998 | 11611729692 | $615.48 | Shop at ECS Tuning | ||||
| 02 | Cover | 1 | 09/1998 | 11617501563 | $78.84 | Shop at ECS Tuning | ||||
| 03 | O-ring | 20,0X3,55 | 1 | 09/1998 | 11151736140 | $2.10 | Shop at ECS Tuning | |||
| 04 | Profile-gasket | 1 | 09/1998 | 11151702291 | $3.46 | Shop at ECS Tuning | ||||
| 05 | Holder | 1 | 09/1998 | 11611704805 | $1.28 | Shop at ECS Tuning | ||||
| 06 | Cap | D=5,0MM | 1 | 09/1998 | 11611437694 | $3.39 | Shop at ECS Tuning | |||
| 07 | Supporting ring | 1 | 09/1998 | 11611437456 | $1.12 | Shop at ECS Tuning | ||||
| 08 | Connector | 1 | 09/1998 | 11611741735 | $11.03 | Shop at ECS Tuning | ||||
| 09 | Blind plug | 1 | 09/1998 | 11611704792 | $9.56 | Shop at ECS Tuning | ||||
| 10 | Vent pipe | 1 | 09/1998 | 11611742826 | $30.86 | Shop at ECS Tuning | ||||
| 11 | O-ring | 12,5X2,0MM | 1 | 09/1998 | 11611745195 | $1.19 | Shop at ECS Tuning | |||
| 12 | Profile-gasket | 1 | 09/1998 | 11611729728 | $7.54 | Shop at ECS Tuning | ||||
| 13 | Screw | M6X25 | 7 | 09/1998 | 11141460752 | $0.60 | Shop at ECS Tuning | |||
| 14 | Profile-gasket | 1 | 09/1998 | 11611729727 | $7.54 | Shop at ECS Tuning | ||||
| 15 | Profile-gasket | 4 | 09/1998 | 11611433328 | $27.37 | Shop at ECS Tuning | ||||
| 16 | Spacer | X | 09/1998 | 11611736648 | $3.54 | Shop at ECS Tuning | ||||
| 17 | Hex nut with plate | AM7 ZNNIV SI | X | 09/1998 | 07129905541 | $0.64 | Shop at ECS Tuning | |||
| 19 | Screw plug | AM12X1,5 | 1 | 09/1998 | 07119909703 | Shop at ECS Tuning | ||||
| 20 | Gasket ring | A12X17-AL | 1 | 09/1998 | 07119963150 | $0.09 | Shop at ECS Tuning | |||
| 21 | Shim | 12X2,5-ZNS3 | 1 | 09/1998 | 26112463728 | Shop at ECS Tuning | ||||
| 22 | Profile-gasket | 1 | 09/1998 | 11611736013 | $1.52 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 535i Intake manifold system?
- This technical diagram illustrates the Intake manifold system within the Engine group for the 5 Series E39 535i produced during 1997. It provides a detailed exploded view of the components, identifying key parts such as the Intake manifold (Part #11611729692).
- Which models use the hardware listed in this Intake manifold system?
- The hardware and components featured in the Intake manifold system are specific to the 5 Series E39 535i produced during 1997. These technical specifications ensure that parts like the Intake manifold (11611729692) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Intake manifold system assembly?
- Each item in the Intake manifold system corresponds to the numbered list below the illustration. For the 5 Series E39 535i, you can identify the Intake manifold by locating its position on the schematic, which then links to the official BMW part number 11611729692 for the Engine section.
