Intake manifold system for BMW 3 Series E46 318i (1998)

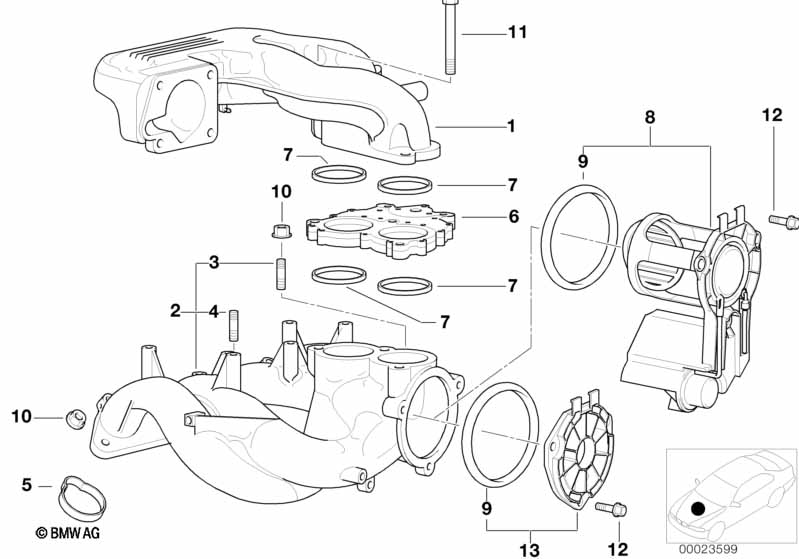

This Intake manifold system technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Intake manifold system | 1 | 11611432032 | Shop at ECS Tuning | ||||||
| 02 | Intake manifold system | 1 | 11611432033 | Shop at ECS Tuning | ||||||
| 03 | Stud bolt | 2 | 11611438821 | Shop at ECS Tuning | ||||||
| 04 | Stud bolt | 2 | 11611438822 | Shop at ECS Tuning | ||||||
| 05 | Profile-gasket | 4 | 11611437384 | $3.63 | Shop at ECS Tuning | |||||
| 06 | Flange | 1 | 11612458970 | Shop at ECS Tuning | ||||||
| 07 | Profile-gasket | 4 | 11611437383 | $4.12 | Shop at ECS Tuning | |||||
| 08 | Adjuster unit | 1 | 11611438404 | $195.92 | Shop at ECS Tuning | |||||
| 09 | O-ring | 75X2,5 | 1 | 11611437691 | $5.62 | Shop at ECS Tuning | ||||
| 10 | Flange nut | M7 | 7 | 11617545279 | $0.47 | Shop at ECS Tuning | ||||
| 11 | Hex bolt with washer | M7X100-Z1 | 1 | 07119901683 | $1.07 | Shop at ECS Tuning | ||||
| 12 | Screw | 3 | 11611709223 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 318i Intake manifold system?
- This technical diagram illustrates the Intake manifold system within the Engine group for the 3 Series E46 318i produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Intake manifold system (Part #11611432032).
- Which models use the hardware listed in this Intake manifold system?
- The hardware and components featured in the Intake manifold system are specific to the 3 Series E46 318i produced during 1998. These technical specifications ensure that parts like the Intake manifold system (11611432032) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Intake manifold system assembly?
- Each item in the Intake manifold system corresponds to the numbered list below the illustration. For the 3 Series E46 318i, you can identify the Intake manifold system by locating its position on the schematic, which then links to the official BMW part number 11611432032 for the Engine section.
