Vacuum control exhaust turbocharger for BMW 3 Series E46 320d

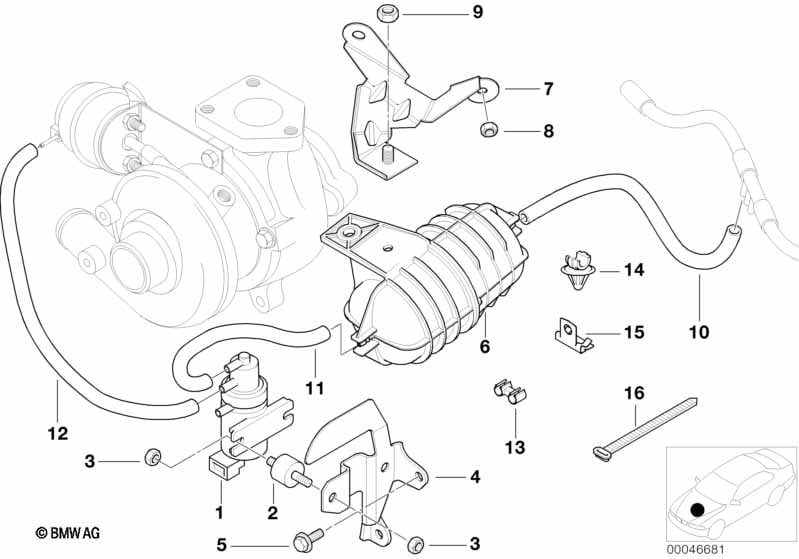

This Vacuum control exhaust turbocharger technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320d. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pressure converter | 1 | 11747796634 | $128.76 | Shop at ECS Tuning | |||||
| 02 | Rubber Mounting | 2 | 11652247721 | $8.12 | Shop at ECS Tuning | |||||
| 03 | Hex nut | BM6-8-ZNNIV SI | 4 | 07129905411 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Holder | 1 | 11657786241 | Shop at ECS Tuning | ||||||
| 05 | Hex bolt with washer | M6X12-U1-8.8 | 2 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 06 | Vacuum tank | 1 | 11652247620 | $29.33 | Shop at ECS Tuning | |||||
| 07 | Bracket, vacuum reservoir | 1 | 12522248185 | Shop at ECS Tuning | ||||||
| 08 | Hex nut | BM6-8-ZNFE SW | 2 | 07129905470 | $0.29 | Shop at ECS Tuning | ||||
| 09 | Self-locking collar nut | M8-8-ZNS3 | 1 | 07119904295 | $0.36 | Shop at ECS Tuning | ||||
| 09 | Self-locking collar nut | M8-10 ZNS3 | 1 | 07119905374 | Shop at ECS Tuning | |||||
| 10 | Vacuum hose black | 3,5X2,0 | X | 11747797129 | $17.14 | Shop at ECS Tuning | ||||
| 11 | Vacuum hose black | 3,5X2,0 | X | 11747797129 | $17.14 | Shop at ECS Tuning | ||||
| 12 | Vacuum hose blue | 3,5X2,0 | X | 11657796879 | $16.43 | Shop at ECS Tuning | ||||
| 13 | Line damper | 2 | 13532354031 | Shop at ECS Tuning | ||||||
| 14 | Clip | D=8MM | 1 | 13311738201 | $0.62 | Shop at ECS Tuning | ||||
| 15 | Clamp | 1 | 12521285014 | $0.92 | Shop at ECS Tuning | |||||
| 16 | Cable tie | L=292MM/B=4,8MM | 1 | 61131377134 | $0.77 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 320d Vacuum control exhaust turbocharger?
- This technical diagram illustrates the Vacuum control exhaust turbocharger within the Engine group for the 3 Series E46 320d. It provides a detailed exploded view of the components, identifying key parts such as the Pressure converter (Part #11747796634).
- Which models use the hardware listed in this Vacuum control exhaust turbocharger?
- The hardware and components featured in the Vacuum control exhaust turbocharger are specific to the 3 Series E46 320d. These technical specifications ensure that parts like the Pressure converter (11747796634) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Vacuum control exhaust turbocharger assembly?
- Each item in the Vacuum control exhaust turbocharger corresponds to the numbered list below the illustration. For the 3 Series E46 320d, you can identify the Pressure converter by locating its position on the schematic, which then links to the official BMW part number 11747796634 for the Engine section.
