Cooling System Water Hoses for BMW 7 Series E38 750iL (1999)

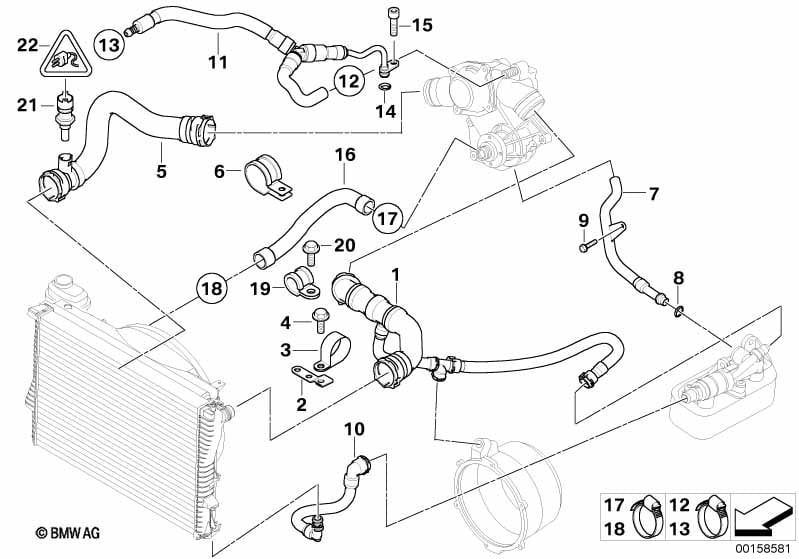

This Cooling System Water Hoses technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 750iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Heater water hose see main section 17 and 64 |
|||||||||
| 01 | Water hose | 1 | 09/1998 | 11531711877 | $67.93 | +core | Shop at ECS Tuning | |||
| For vehicles with Gulf version or Hot-climate version |
L822A=Yes S823A=Yes |
|||||||||
| 01 | Water hose | 1 | 09/1998 | 11531712523 | +core | Shop at ECS Tuning | ||||
| 02 | Bracket | 1 | 09/1998 | 11531712953 | $3.47 | Shop at ECS Tuning | ||||
| 03 | Clamp | 1 | 09/1998 | 11531712943 | $6.05 | ENDED | Shop at ECS Tuning | |||
| 04 | Hex bolt | M6X14-Z3-1 | 1 | 09/1998 | 07119915100 | $0.60 | Shop at ECS Tuning | |||
| 05 | Water hose | 1 | 09/1998 | 11531711878 | $33.96 | +core | Shop at ECS Tuning | |||
| 06 | Clamp | 1 | 09/1998 | 11531702767 | $4.33 | Shop at ECS Tuning | ||||
| 07 | Coolant pipe, return line | 1 | 09/1998 | 11531711885 | $71.68 | +core | Shop at ECS Tuning | |||
| 08 | O-ring | 14,4X3,0MM | 1 | 09/1998 | 11537501777 | $1.19 | Shop at ECS Tuning | |||
| 09 | Hex bolt with washer | M6X16-U1-8.8 | 1 | 09/1998 | 07119904524 | $0.25 | Shop at ECS Tuning | |||
| 10 | Water hose | 1 | 09/1998 | 11531711385 | $15.09 | +core | Shop at ECS Tuning | |||

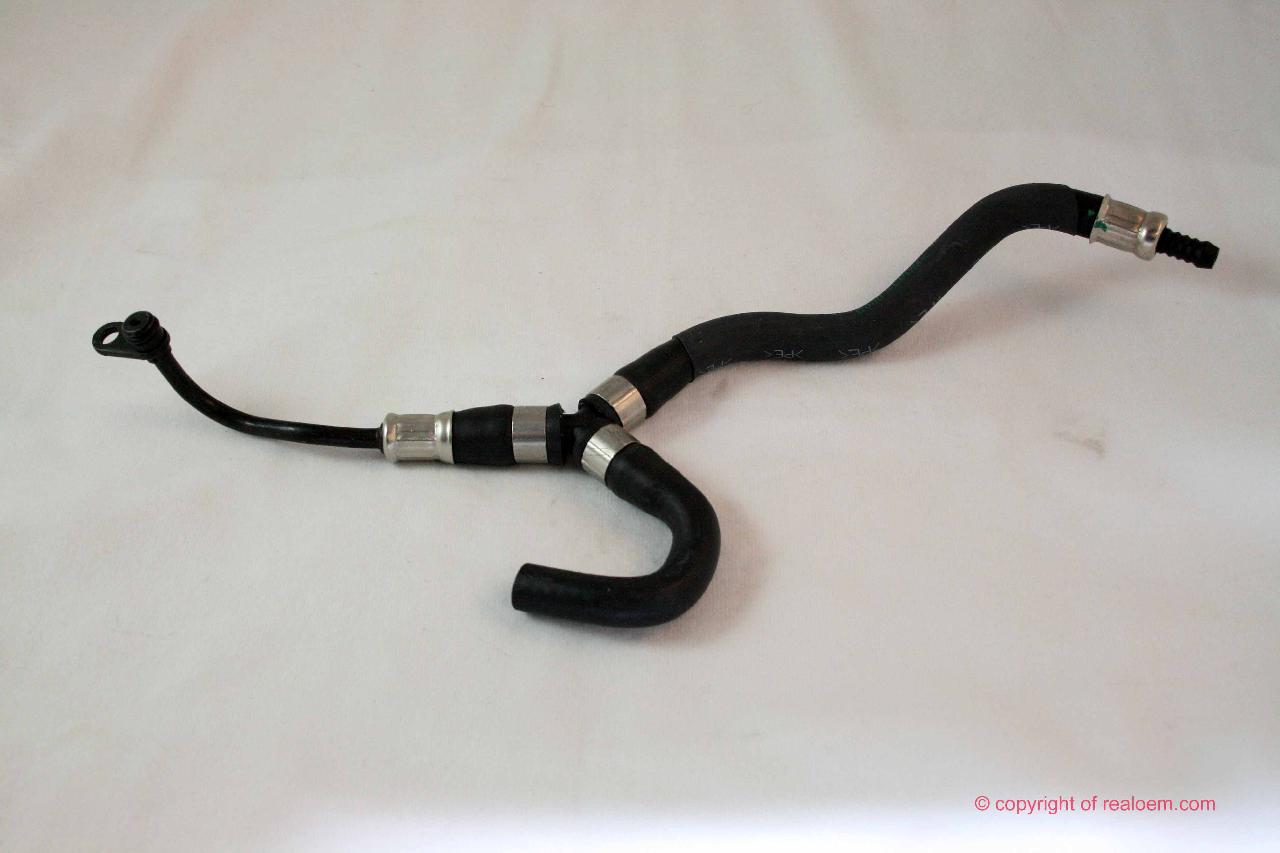

| 11 | Vent hose | 1 | 09/1998 | 11531440104 | $47.42 | +core | Shop at ECS Tuning | |||
| 12 | Hose clamp | L12-15 | 1 | 09/1998 | 07129952104 | $1.18 | Shop at ECS Tuning | |||
| 13 | Hose clamp | L12-14,5 | 1 | 09/1998 | 32411712735 | $0.62 | Shop at ECS Tuning | |||
| 14 | O-ring | 6,0X2,5MM | 1 | 09/1998 | 11537501776 | $1.12 | ENDED | Shop at ECS Tuning | ||
| 16 | Water hose | 1 | 09/1998 | 11531741417 | $18.87 | Shop at ECS Tuning | ||||
| 17 | Hose clamp | L28-33 | 1 | 09/1998 | 07129952113 | $0.96 | Shop at ECS Tuning | |||
| 18 | Hose clamp | 23,9-27,1 | 1 | 09/1998 | 11631716970 | $0.79 | Shop at ECS Tuning | |||
| 19 | Clamp | D=23/6,4 | 1 | 09/1998 | 12521270936 | $1.77 | Shop at ECS Tuning | |||
| 20 | Hex bolt with washer | M6X20-Z3 | 1 | 09/1998 | 07119915031 | $0.24 | Shop at ECS Tuning | |||
| 21 | Temperature sensor, coolant | 1 | 09/1998 | 13621433077 | $25.03 | Shop at ECS Tuning | ||||
| 22 | Socket housing | 2 POL. | 1 | 09/1998 | 12521427615 | $1.73 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Socket terminal SLK 2.8 ELA | 0,22-0,35MM² AG | 2 | 09/1998 | 12521427612 | $0.50 | SI 2 02 05(194) | Shop at ECS Tuning | ||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
- SI = Service Information
