Cooling System Water Hoses for BMW 3 Series E46 330d (2001)

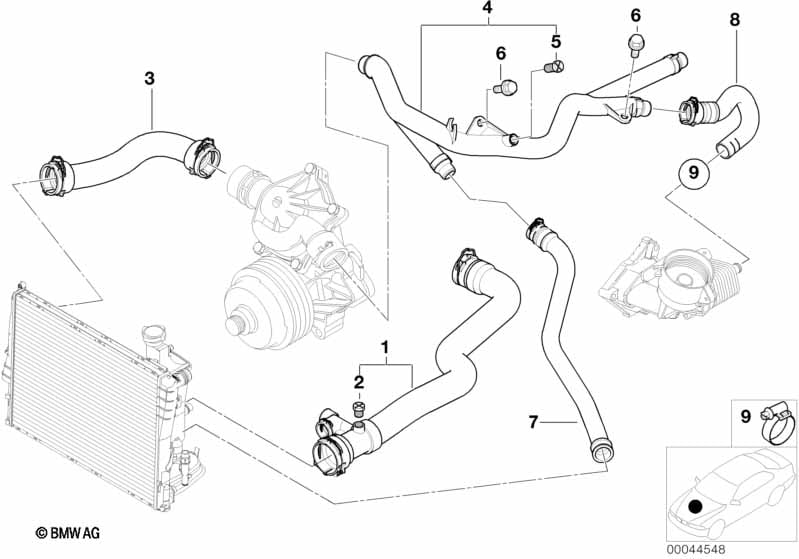

This Cooling System Water Hoses technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Heater water hose see main section 64 |
|||||||||
| For vehicles with Automatic transmission |
S205A=No |
|||||||||
| 01 | Water hose | 1 | 11532247849 | +core | Shop at ECS Tuning | |||||
| 02 | Vent screw | M10 | 1 | 11537793373 | $5.79 | Shop at ECS Tuning | ||||
| 03 | Water hose | 1 | 11532247851 | +core | Shop at ECS Tuning | |||||
| 04 | Return pipe | 1 | 11532247681 | Shop at ECS Tuning | ||||||
| 05 | Vent screw | M10 | 1 | 11537793373 | $5.79 | Shop at ECS Tuning | ||||
| 06 | Collar screw | M6X18-ZNS3 | 2 | 11537804636 | $0.60 | Shop at ECS Tuning | ||||
| 07 | Water hose | 1 | 11532247852 | $22.64 | +core | Shop at ECS Tuning | ||||
| 08 | Water hose | 1 | 11352247879 | Shop at ECS Tuning | ||||||
| 09 | Hose clamp | L16-30 | 1 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
