Cooling System Water Hoses for BMW 5 Series E39 530d (2001)

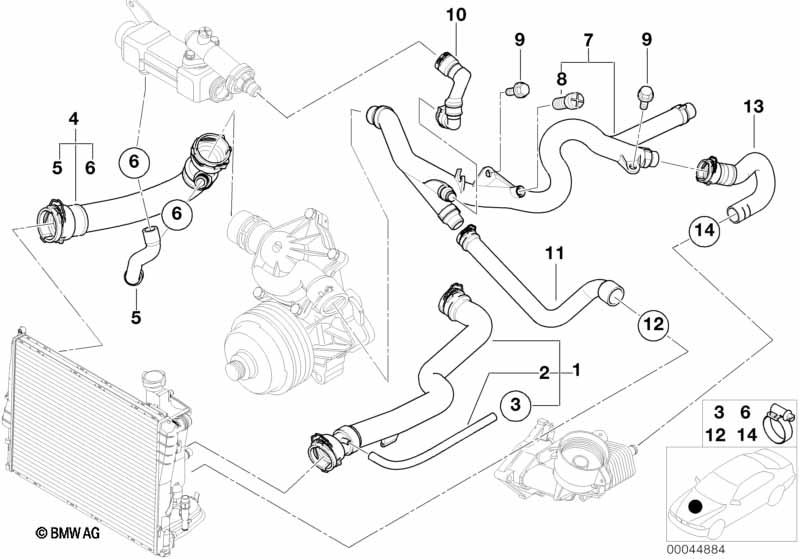

This Cooling System Water Hoses technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 530d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Heater water hose see main section 64 |
|||||||||
| 01 | Water hose | 1 | 08/2000 | 11537785018 | $45.29 | +core | Shop at ECS Tuning | |||
| 02 | Water hose | 1 | 08/2000 | 17122244493 | Shop at ECS Tuning | |||||
| 03 | Hose clamp | L12-15 | 1 | 08/2000 | 07129952104 | $1.18 | Shop at ECS Tuning | |||
| 04 | Water hose | 1 | 08/2000 | 11537787336 | +core | Shop at ECS Tuning | ||||
| 05 | Water hose | 1 | 08/2000 | 11537785714 | +core | Shop at ECS Tuning | ||||
| 06 | Hose clamp | L18-24 | 2 | 08/2000 | 07129952109 | $1.07 | Shop at ECS Tuning | |||
| 07 | Return pipe | 1 | 08/2000 | 11537802629 | Shop at ECS Tuning | |||||
| 08 | Vent screw | M10 | 1 | 08/2000 | 11537793373 | $5.79 | Shop at ECS Tuning | |||
| 09 | Collar screw | M6X18-ZNS3 | 2 | 08/2000 | 11537804636 | $0.60 | Shop at ECS Tuning | |||
| 10 | Water hose | 1 | 08/2000 | 11532249314 | +core | Shop at ECS Tuning | ||||
| 11 | Water hose | 1 | 08/2000 | 11532247820 | Shop at ECS Tuning | |||||
| 12 | Hose clamp | L32-38 | 1 | 08/2000 | 07129952115 | $1.27 | Shop at ECS Tuning | |||
| 13 | Water hose | 1 | 08/2000 | 11352247879 | Shop at ECS Tuning | |||||
| 14 | Hose clamp | L16-30 | 1 | 08/2000 | 64218367179 | $1.07 | Shop at ECS Tuning | |||
Notes
- +core = plus core charge (possibility of a return of the old part)
