Oil pump and compensating shaft unit for BMW 3 Series E91 320i (2005)

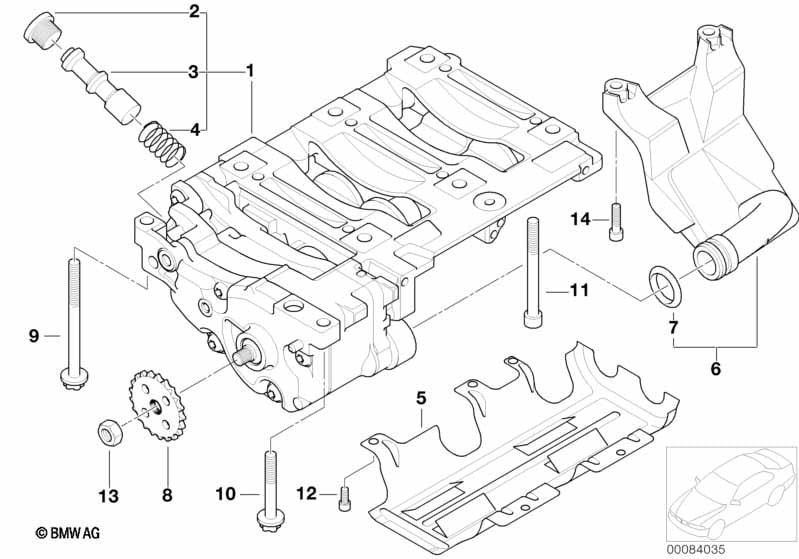

This Oil pump and compensating shaft unit technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil pump and compensating shaft unit | 1 | 11277594471 | Shop at ECS Tuning | ||||||
| 02 | Screw plug | 1 | 11417507650 | Shop at ECS Tuning | ||||||
| 03 | Control valve | 1 | 11417507648 | Shop at ECS Tuning | ||||||
| 04 | SPRING WITH SEAT | 1 | 11417507755 | Shop at ECS Tuning | ||||||
| 06 | Suction pipe | 1 | 11417500328 | +core | Shop at ECS Tuning | |||||
| 07 | O-ring | 22,2X3,15 | 1 | 11417507756 | $1.83 | Shop at ECS Tuning | ||||
| 08 | Sprocket | 1 | 11317507551 | Shop at ECS Tuning | ||||||
| 09 | Torx bolt | M8X100-8.8 | 1 | 11277505696 | Shop at ECS Tuning | |||||
| 10 | Torx bolt | M8X55 | 1 | 11277505697 | Shop at ECS Tuning | |||||
| 11 | Torx bolt | M8X83 | 6 | 11277504379 | Shop at ECS Tuning | |||||
| 13 | Hex nut | M10X1-LH | 1 | 11417506378 | Shop at ECS Tuning | |||||
| 14 | ISA screw | M6X20-U1-8.8 PH | 2 | 07129905061 | $0.96 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E91 320i Oil pump and compensating shaft unit?
- This technical diagram illustrates the Oil pump and compensating shaft unit within the Engine group for the 3 Series E91 320i produced during 2005. It provides a detailed exploded view of the components, identifying key parts such as the Oil pump and compensating shaft unit (Part #11277594471).
- Which models use the hardware listed in this Oil pump and compensating shaft unit?
- The hardware and components featured in the Oil pump and compensating shaft unit are specific to the 3 Series E91 320i produced during 2005. These technical specifications ensure that parts like the Oil pump and compensating shaft unit (11277594471) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Oil pump and compensating shaft unit assembly?
- Each item in the Oil pump and compensating shaft unit corresponds to the numbered list below the illustration. For the 3 Series E91 320i, you can identify the Oil pump and compensating shaft unit by locating its position on the schematic, which then links to the official BMW part number 11277594471 for the Engine section.
