Engine Block Mounting Parts for BMW 3 Series E90 320d (2005)

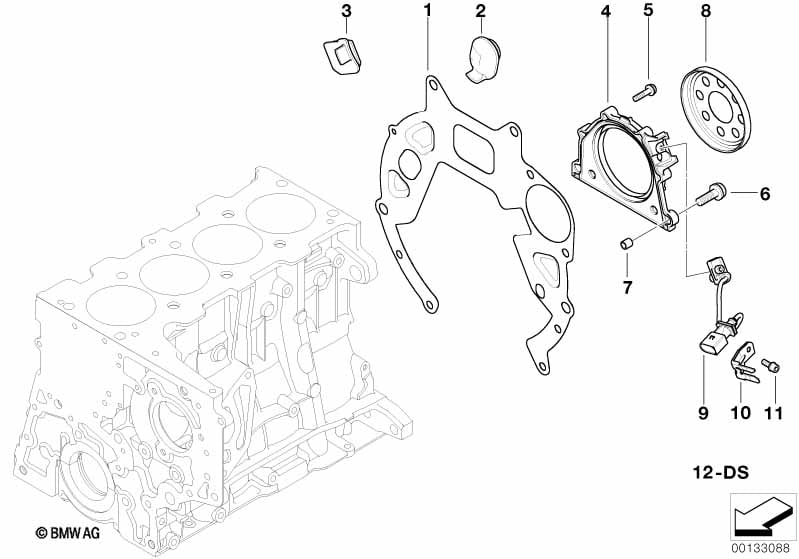

This Engine Block Mounting Parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Covering plate | 1 | 11147789874 | Shop at ECS Tuning | ||||||
| 02 | Cover lid | 1 | 11141730453 | $3.22 | Shop at ECS Tuning | |||||
| 04 | Cap with shaft seal | 1 | 11147787262 | $86.79 | Shop at ECS Tuning | |||||
| 05 | Hex bolt with washer | M6X25-ZNNIV SI | 4 | 07119905400 | $0.65 | Shop at ECS Tuning | ||||
| 06 | Hex bolt with washer | M8X28-ZNNIV SI | 2 | 07119905530 | $0.71 | Shop at ECS Tuning | ||||
| 07 | Dowel | D=10,5MM | 2 | 11121726238 | $1.62 | Shop at ECS Tuning | ||||
| 08 | Reluctor | 1 | 11217787237 | $36.43 | Shop at ECS Tuning | |||||
| 09 | Crankshaft sensor | 1 | 13627809334 | $74.87 | Shop at ECS Tuning | |||||
| 10 | Bracket plug terminal | 1 | 13627804172 | $2.22 | Shop at ECS Tuning | |||||
| 11 | ISA screw | M6X12 | 1 | 07129904831 | $1.20 | Shop at ECS Tuning | ||||
| 12 | Gasket Set Engine Block Asbesto Free | 1 | 11110394505 | Shop at ECS Tuning |
