Vacuum control exhaust turbocharger for BMW 3 Series E46 320d (2003)

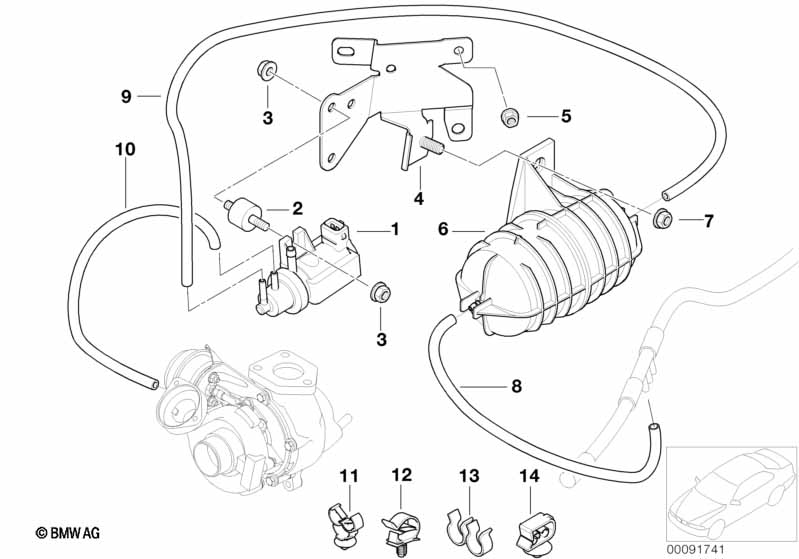

This Vacuum control exhaust turbocharger technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pressure converter | 1 | 11747796634 | $128.76 | Shop at ECS Tuning | |||||
| 02 | Rubber Mounting | 2 | 11652247721 | $8.12 | Shop at ECS Tuning | |||||
| 03 | Hex nut | BM6-8-ZNNIV SI | 4 | 07129905411 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Bracket, vacuum reservoir | 1 | 06/2003 | 11657792322 | ENDED | Shop at ECS Tuning | ||||
| 05 | Hex nut | BM6-8-ZNNIV SI | 3 | 07129905411 | $0.38 | Shop at ECS Tuning | ||||
| 06 | Vacuum tank | 1 | 11652247620 | $29.33 | Shop at ECS Tuning | |||||
| 07 | Self-locking collar nut | M8-8-ZNS3 | 1 | 07119904295 | $0.36 | Shop at ECS Tuning | ||||
| 07 | Self-locking collar nut | M8-10 ZNS3 | 1 | 07119905374 | Shop at ECS Tuning | |||||
| 08 | Vacuum hose black | 3,5X2,0 | X | 11747797129 | $17.14 | Shop at ECS Tuning | ||||
| 09 | Vacuum hose black | 3,5X2,0 | X | 11747797129 | $17.14 | Shop at ECS Tuning | ||||
| 10 | Vacuum hose blue | 3,5X2,0 | X | 11657796879 | $16.43 | Shop at ECS Tuning | ||||
| 11 | Wire holder, two-place | 1 | 61138380213 | $0.35 | Shop at ECS Tuning | |||||
| 12 | Tubing support | 1 | 12521741316 | $0.47 | Shop at ECS Tuning | |||||
| 13 | Spacer | 1 | 11667786712 | $0.48 | Shop at ECS Tuning | |||||
| 14 | Cable clip | 1 | 61138350836 | $0.42 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 320d Vacuum control exhaust turbocharger?
- This technical diagram illustrates the Vacuum control exhaust turbocharger within the Engine group for the 3 Series E46 320d produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Pressure converter (Part #11747796634).
- Which models use the hardware listed in this Vacuum control exhaust turbocharger?
- The hardware and components featured in the Vacuum control exhaust turbocharger are specific to the 3 Series E46 320d produced during 2003. These technical specifications ensure that parts like the Pressure converter (11747796634) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Vacuum control exhaust turbocharger assembly?
- Each item in the Vacuum control exhaust turbocharger corresponds to the numbered list below the illustration. For the 3 Series E46 320d, you can identify the Pressure converter by locating its position on the schematic, which then links to the official BMW part number 11747796634 for the Engine section.
