Intake manifold AGR without flap control for BMW 3 Series E90 318d (2005)

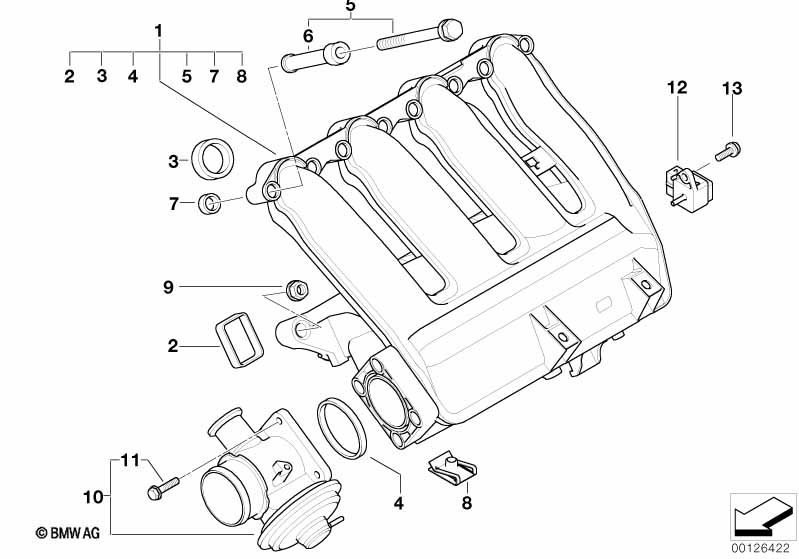

This Intake manifold AGR without flap control technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 318d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Diesel particle filter |
S200A=No |
|||||||||
| 01 | Intake manifold | 1 | 11617800578 | Shop at ECS Tuning | ||||||
| 02 | Profile-gasket | 4 | 11617790198 | $5.44 | Shop at ECS Tuning | |||||
| 03 | Profile-gasket | 4 | 11612246945 | $3.62 | Shop at ECS Tuning | |||||
| 04 | Rubber seal | 1 | 11612245439 | $2.42 | Shop at ECS Tuning | |||||
| 05 | Fastening elements | M6X42 | 8 | 11612246948 | $3.40 | Shop at ECS Tuning | ||||
| 06 | Rubber Mounting | 5 | 11612246947 | $7.60 | Shop at ECS Tuning | |||||
| 07 | backup ring | 5 | 11612246949 | $4.97 | Shop at ECS Tuning | |||||
| 08 | C-clip nut | M6-ZNS3 | 2 | 51127070202 | $1.00 | Shop at ECS Tuning | ||||
| 09 | Flange nut | M7 | 5 | 11617545279 | $0.47 | Shop at ECS Tuning | ||||
| 10 | EGR-valve | 1 | 11717804381 | Shop at ECS Tuning | ||||||
| 10 | EGR-valve | 1 | 11718479607 | ENDED | Shop at ECS Tuning | |||||
| 11 | Internal Torx screw with washer | M6X25-U1-8.8 | 4 | 07129905558 | $0.44 | Shop at ECS Tuning | ||||
| 12 | Fuel injection system-ressure sensor | 1 | 13617787142 | Shop at ECS Tuning | ||||||
| 13 | Hex bolt with washer | M6X14-U1-8.8 | 1 | 07119905525 | $0.47 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
