Intake manifold-AGR - Vacuum-controlled for BMW 5 Series E60 525d (2006)

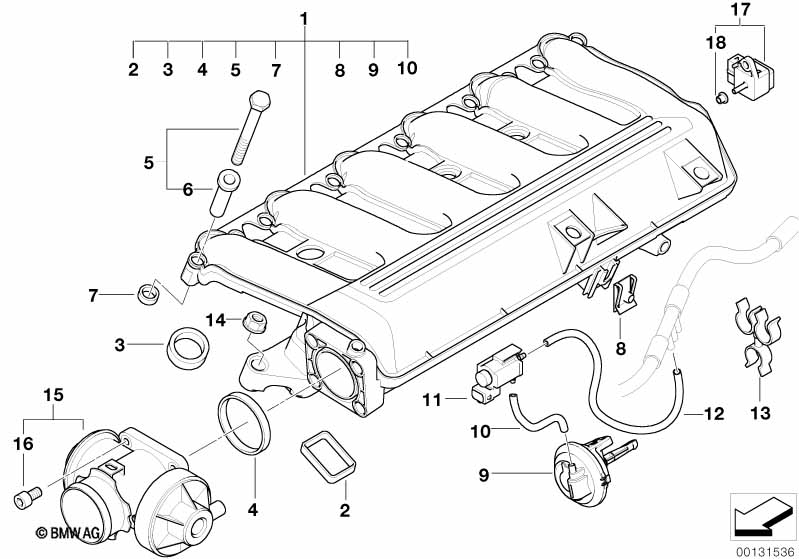

This Intake manifold-AGR - Vacuum-controlled technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with EU3 exhaust emissions standard Important! Please observe PuMA Measure 19196848! |
S169A=Yes |
|||||||||
| 01 | Intake manifold with flap control | 1 | 11617800585 | $615.48 | Shop at ECS Tuning | |||||
| For vehicles with EU3 exhaust emissions standard |
S169A=Yes |
|||||||||
| 02 | Profile-gasket | 6 | 11617790198 | $5.44 | Shop at ECS Tuning | |||||
| 03 | Profile-gasket | 6 | 11612246945 | $3.62 | Shop at ECS Tuning | |||||
| 04 | Rubber seal | 1 | 11612245439 | $2.42 | Shop at ECS Tuning | |||||
| 05 | Fastening elements | M6X42 | 12 | 11612246948 | $3.40 | Shop at ECS Tuning | ||||
| 06 | Rubber Mounting | 7 | 11612246947 | $7.60 | Shop at ECS Tuning | |||||
| 07 | backup ring | 7 | 11612246949 | $4.97 | Shop at ECS Tuning | |||||
| 08 | C-clip nut | M6-ZNS3 | 2 | 51127070202 | $1.00 | Shop at ECS Tuning | ||||
| 09 | Vacumm box | 1 | 11617786961 | Shop at ECS Tuning | ||||||
| 10 | Vacuum hose white | 3,3X1,8 | X | 11747797177 | $17.14 | Shop at ECS Tuning | ||||
| 11 | Electr.valve | 1 | 11747810831 | $46.70 | Shop at ECS Tuning | |||||
| 12 | Vacuum hose black | 3,5X1,8 | X | 11727545323 | $14.82 | Shop at ECS Tuning | ||||
| 13 | Hose clamp | 3 | 11742248843 | $1.18 | Shop at ECS Tuning | |||||
| 14 | Flange nut | M7 | 7 | 11617545279 | $0.47 | Shop at ECS Tuning | ||||
| 15 | EGR-valve | 1 | 11717804381 | Shop at ECS Tuning | ||||||
| 15 | EGR-valve | 1 | 11718479607 | ENDED | Shop at ECS Tuning | |||||
| 16 | Internal Torx screw with washer | M6X25-U1-8.8 | 4 | 07129905558 | $0.44 | Shop at ECS Tuning | ||||
| 17 | Fuel injection system-ressure sensor | 1 | 13627792260 | $49.45 | Shop at ECS Tuning | |||||
| 18 | Grommet | 1 | 13627792261 | $3.67 | Shop at ECS Tuning | |||||
