VANOS cylinder head mounting parts for BMW 5 Series E60 M5 (2006)

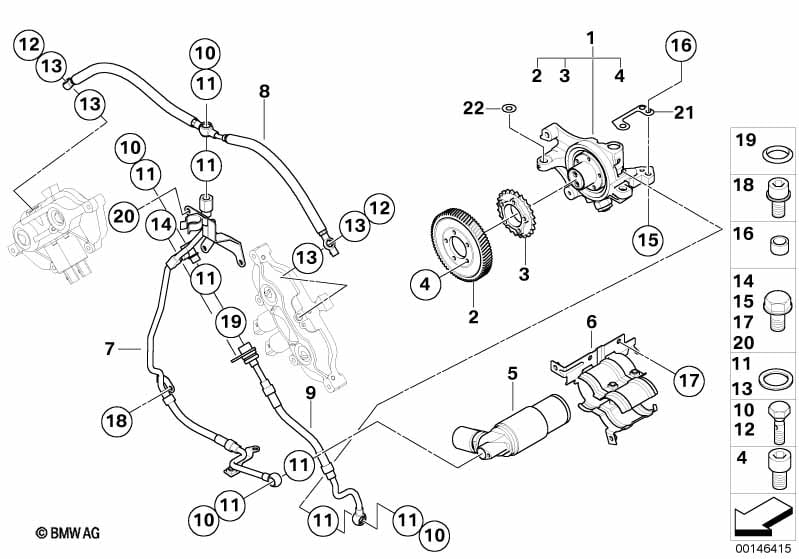

This VANOS cylinder head mounting parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vanos High-pressure pump | 1 | 11367841784 | $2669.90 | Shop at ECS Tuning | |||||
| 02 | Gear wheel | 1 | 12/2005 | 11367838018 | $109.33 | Shop at ECS Tuning | ||||
| 03 | Sprocket | 1 | 11367837043 | $52.06 | Shop at ECS Tuning | |||||
| 04 | Fillister-head screw | M5X30-8.8 | 5 | 11367835920 | $1.28 | Shop at ECS Tuning | ||||
| 05 | Pressure accumulator | 1 | 11367834553 | $429.20 | Shop at ECS Tuning | |||||
| 06 | Holder | 1 | 10/2006 | 07/2007 | 11367840979 | $93.68 | +core | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Pressure hose assy | 1 | 10/2006 | 07/2007 | 11727840980 | $57.87 | Shop at ECS Tuning | |||
| 07 | Pressure hose assy | 1 | 11367838670 | $208.16 | +core | Shop at ECS Tuning | ||||
| 08 | Connecting line | 1 | 11367834573 | $96.05 | +core | Shop at ECS Tuning | ||||
| 09 | Pressure hose assy | 1 | 11367838669 | $122.35 | +core | Shop at ECS Tuning | ||||
| 10 | Hollow bolt | 4 | 07119905176 | $3.82 | Shop at ECS Tuning | |||||
| 11 | Gasket ring | A12X15-CU | 8 | 07119963129 | $0.11 | Shop at ECS Tuning | ||||
| 12 | Hollow bolt | 2 | 07119905175 | $3.29 | Shop at ECS Tuning | |||||
| 13 | Gasket ring | A10X13,5-CU | 4 | 07119963072 | $0.11 | Shop at ECS Tuning | ||||
| 14 | Hex bolt | M6X15-U1-8.8 | 1 | 07119902937 | $0.80 | Shop at ECS Tuning | ||||
| 15 | Hex bolt with washer | M6X30-U1 | 3 | 07119905429 | $2.80 | Shop at ECS Tuning | ||||
| 16 | Dowel | D=8,5X9MM | 2 | 11121726242 | $1.07 | Shop at ECS Tuning | ||||
| 17 | Hex bolt | M6X15-U1-8.8 | 3 | 07119902937 | $0.80 | Shop at ECS Tuning | ||||
| 18 | Torx-bolt with washer | M6X16-8.8-ZNNIV | 1 | 07129904819 | $0.38 | Shop at ECS Tuning | ||||
| 19 | O-ring | 18X2MM | 1 | 11367834552 | $1.81 | Shop at ECS Tuning | ||||
| 20 | Hex bolt | M6X10 | 1 | 07119903842 | $0.45 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
