Rep. kit, drivebelt assembly,Value Line for BMW 5 Series E60 LCI 520d (2006)

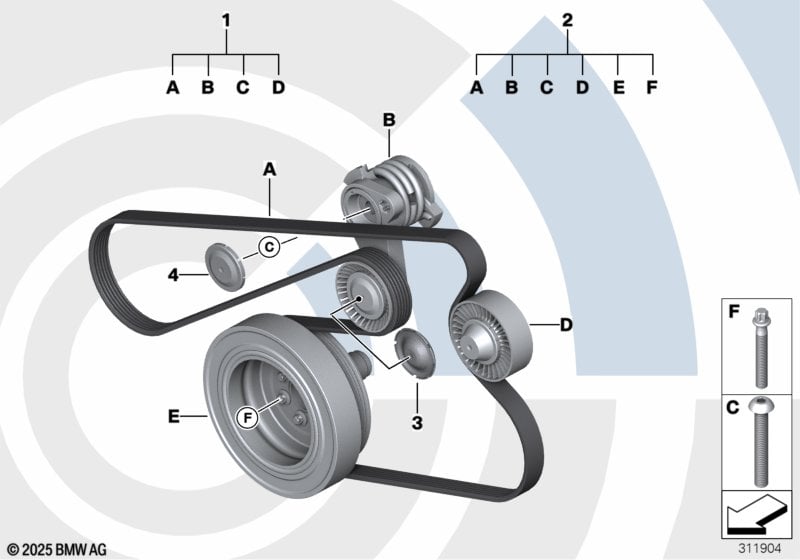

This Rep. kit, drivebelt assembly,Value Line technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| VALUE REPAIR PARTS! Saves time, logistical costs and handling costs. Improves the repair quality. |
||||||||||
| 01 | Repair kit for belt drive | VALUE PARTS | 1 | 11282339105 | Shop at ECS Tuning | |||||
| Please observe Repair Manual. | ||||||||||
| 02 | Repair kit for belt drive, complete | VALUE PARTS | 1 | 11282339110 | Shop at ECS Tuning | |||||
| Please observe Repair Manual. | ||||||||||
| 03 | Protection cap adjusting pulley | 1 | 11287802640 | Shop at ECS Tuning | ||||||
| 04 | Protection cap | 1 | 11281435114 | $2.37 | Shop at ECS Tuning | |||||
