Rod-type ignition coil for BMW 3 Series E36 318i (1991)

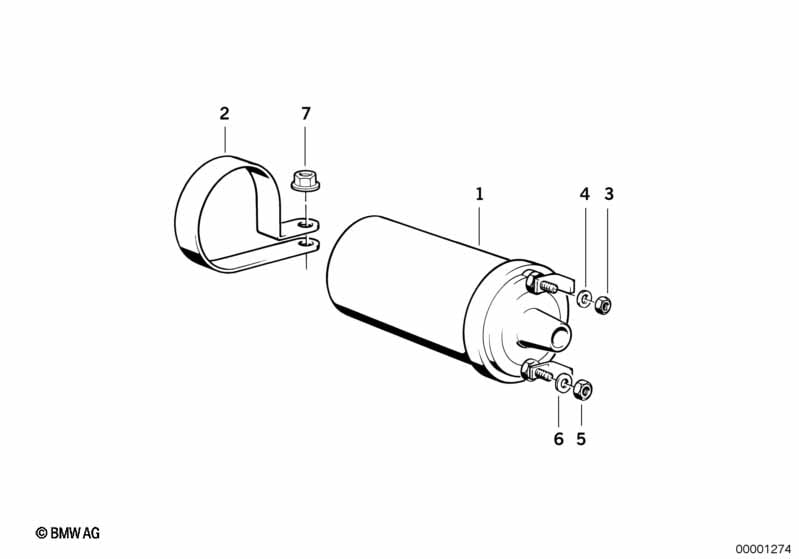

This Rod-type ignition coil technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ignition coil | 1 | 12131286087 | $114.46 | Shop at ECS Tuning | |||||
| 02 | Clamp | 1 | 12131286080 | $5.08 | Shop at ECS Tuning | |||||
| 03 | Hex nut | M6-8-ZNNIV SI | 1 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Washer | A6,4-ZNNIV SI | 1 | 07119904202 | Shop at ECS Tuning | |||||
| 05 | Hex nut | M5-8-ZNNIV SI | 1 | 07119905729 | Shop at ECS Tuning | |||||
| 06 | Washer | 10X5,3X1-200 HV | 1 | 07119904206 | Shop at ECS Tuning | |||||
| 06 | Washer | 5.3-140 HV-ZNS | 1 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 07 | Hex nut with plate | M8 | 1 | 51117070183 | $0.77 | Shop at ECS Tuning |
