Cable, starter for BMW 3 Series E91 320d (2006)

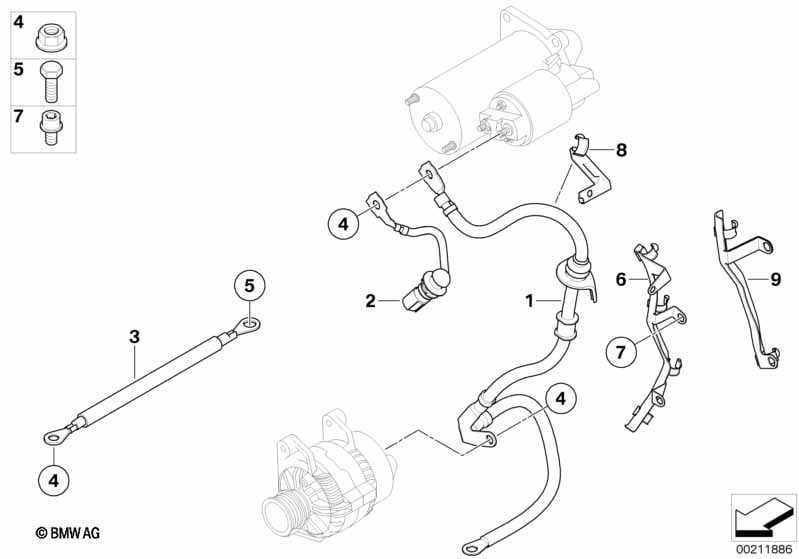

This Cable, starter technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cable, altern, start motor supp point B+ | 1 | 12427794911 | Shop at ECS Tuning | ||||||
| 02 | Lead for preheater system | 1 | 12427794908 | Shop at ECS Tuning | ||||||
| 03 | Ground cable | 1 | 12427549393 | $15.05 | Shop at ECS Tuning | |||||
| 04 | Collar nut | M8-8-SC-ZNNIV | 2 | 07119906089 | $0.32 | Shop at ECS Tuning |
