Idle increase for BMW 3 Series E30 318i (1982)

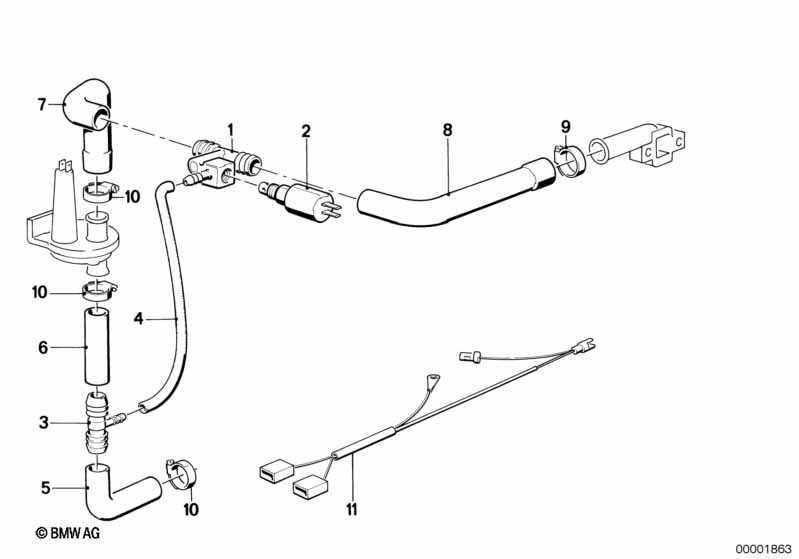

This Idle increase technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ONLY APPLIES TO AIR CONDITION | |||||||||
| 01 | Connection piece | 1 | 09/1983 | 64511286808 | $11.98 | Shop at ECS Tuning | ||||
| 01 | Connection piece | 1 | 09/1983 | 64511286808 | $11.98 | Shop at ECS Tuning | ||||
| 02 | Valve | 1 | 09/1983 | 64511286807 | $115.64 | Shop at ECS Tuning | ||||
| 02 | Valve | 1 | 09/1983 | 64511286807 | $115.64 | Shop at ECS Tuning | ||||
| 03 | T-Connector | 1 | 09/1983 | 64511286809 | $1.86 | Shop at ECS Tuning | ||||
| 03 | T-Connector | 1 | 09/1983 | 64511286809 | $1.86 | Shop at ECS Tuning | ||||
| 04 | Fuel hose | 6X11MM | 1 | 09/1983 | 13311272750 | $11.62 | Shop at ECS Tuning | |||
| 04 | Fuel hose | 6X11MM | 1 | 09/1983 | 13311272750 | $11.62 | Shop at ECS Tuning | |||
| 05 | Hose | 1 | 09/1983 | 11611267837 | $6.82 | Shop at ECS Tuning | ||||
| 05 | Hose | 1 | 09/1983 | 11611267837 | $6.82 | Shop at ECS Tuning | ||||
| 06 | Hose | 1 | 09/1983 | 11611267837 | $6.82 | Shop at ECS Tuning | ||||
| 06 | Hose | 1 | 09/1983 | 11611267837 | $6.82 | Shop at ECS Tuning | ||||

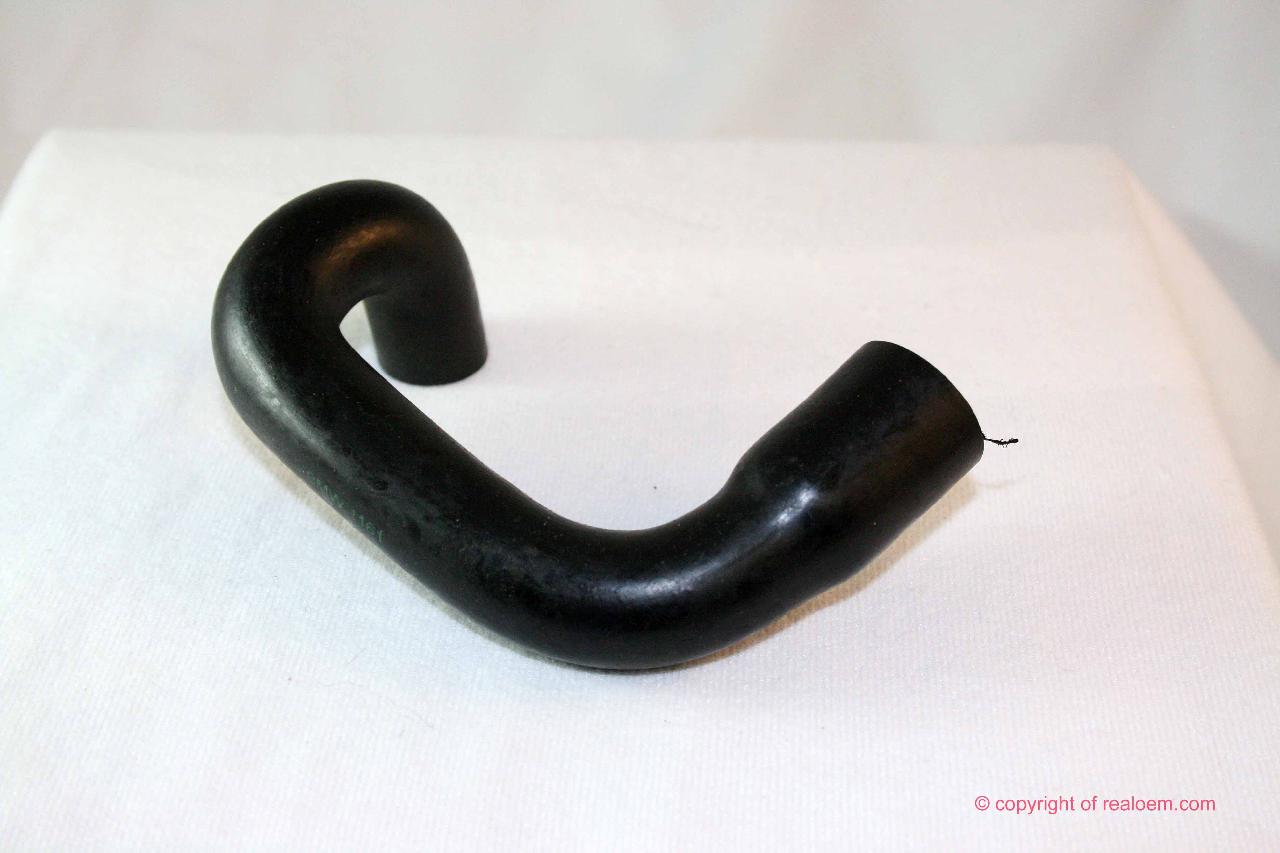

| 07 | Hose | 1 | 09/1983 | 11611270630 | $9.65 | Shop at ECS Tuning | ||||
| 07 | Hose | 1 | 09/1983 | 11611270630 | $9.65 | Shop at ECS Tuning | ||||
| 08 | Hose | 1 | 09/1983 | 11611270630 | $9.65 | Shop at ECS Tuning | ||||
| 08 | Hose | 1 | 09/1983 | 11611270630 | $9.65 | Shop at ECS Tuning | ||||
| 09 | Hose clamp | L16-30 | 1 | 09/1983 | 64218367179 | $1.07 | Shop at ECS Tuning | |||
| 09 | Hose clamp | L16-30 | 1 | 09/1983 | 64218367179 | $1.07 | Shop at ECS Tuning | |||
| 10 | Hose clamp | L18-24 | 3 | 09/1983 | 07129952109 | $1.07 | Shop at ECS Tuning | |||
| 10 | Hose clamp | L18-24 | 3 | 09/1983 | 07129952109 | $1.07 | Shop at ECS Tuning | |||
| 11 | Cable harness | 1 | 09/1983 | 12511287789 | $14.23 | ENDED | Shop at ECS Tuning | |||
| 11 | Cable harness | 1 | 09/1983 | 12511287789 | $14.23 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 318i Idle increase?
- This technical diagram illustrates the Idle increase within the Fuel preparation system group for the 3 Series E30 318i produced during 1982. It provides a detailed exploded view of the components, identifying key parts such as the Connection piece (Part #64511286808).
- Which models use the hardware listed in this Idle increase?
- The hardware and components featured in the Idle increase are specific to the 3 Series E30 318i produced during 1982. These technical specifications ensure that parts like the Connection piece (64511286808) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Idle increase assembly?
- Each item in the Idle increase corresponds to the numbered list below the illustration. For the 3 Series E30 318i, you can identify the Connection piece by locating its position on the schematic, which then links to the official BMW part number 64511286808 for the Fuel preparation system section.
