Fuel injection system Diesel for BMW 3 Series E36 325tds (1997)

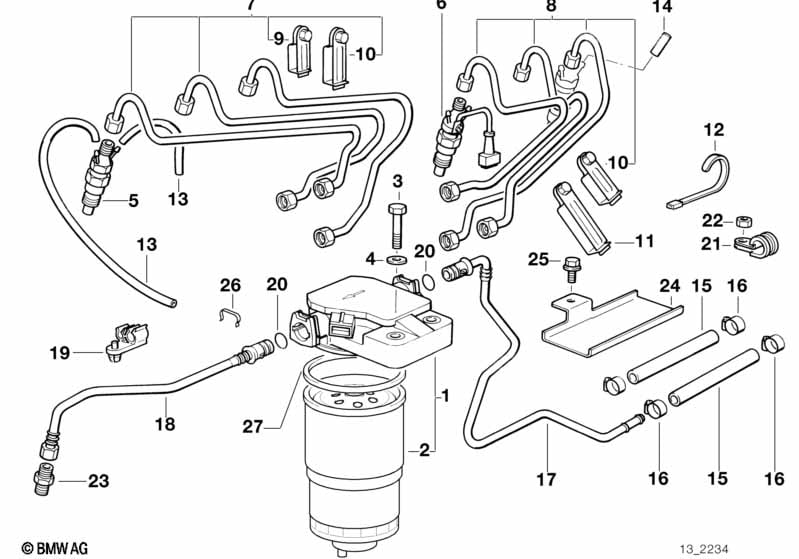

This Fuel injection system Diesel technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1997.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fuel strainer with heating | 1 | 13322244982 | $167.40 | ENDED | Shop at ECS Tuning | ||||
| 02 | Filter cartridge | 1 | 13327786647 | $48.98 | Shop at ECS Tuning | |||||
| 03 | Hex bolt | M8X40-ZNNIV SI | 2 | 07119905549 | $1.05 | Shop at ECS Tuning | ||||
| 04 | Washer | 8,4X16X1,6-ZNNV | 2 | 07119907030 | Shop at ECS Tuning | |||||
| 07 | Injection pipe | ZYL.1-3 | 1 | 13532246559 | $78.96 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Pipe clamp | 1 | 13532246558 | Shop at ECS Tuning | ||||||
| 08 | Injection pipe | ZYL.4-6 | 1 | 13532246560 | $78.96 | Shop at ECS Tuning | ||||
| 09 | Pipe clamp | 1 | 01/1996 | 13532246555 | ENDED | Shop at ECS Tuning | ||||
| 10 | Pipe clamp | 2 | 01/1996 | 13532246557 | ENDED | Shop at ECS Tuning | ||||
| 11 | Pipe clamp | 1 | 01/1996 | 13532246558 | Shop at ECS Tuning | |||||
| 12 | Cable tie | L=292MM/B=4,8MM | 1 | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 13 | Fuel hose | 3X7MM | X | 01/1995 | 13532246959 | $33.57 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Connector | DDE2.1 | 1 | 01/1995 | 13512246147 | Shop at ECS Tuning | ||||
| 14 | Cap | 3,0MM/FPM | 1 | 13532246127 | $1.87 | ENDED | Shop at ECS Tuning | |||
| 15 | Fuel hose | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| 16 | Hose clamp | L12-15 | 2 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 17 | Fuel supply line | 1 | 13532244448 | $21.32 | Shop at ECS Tuning | |||||
| 18 | Fuel supply line | 1 | 13532244016 | Shop at ECS Tuning | ||||||
| 19 | Clip | AKF | 1 | 16131181031 | $1.62 | Shop at ECS Tuning | ||||
| 20 | O-ring | 13X1,5 | 4 | 13532243717 | $1.88 | Shop at ECS Tuning | ||||
| 21 | Clamp | D=14/6,4 | 1 | 16121178487 | $1.23 | Shop at ECS Tuning | ||||
| 22 | Hex nut | M6-8-ZNNIV SI | 1 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 23 | Connector | A8-ZN | 1 | 07119964525 | $17.62 | ENDED | Shop at ECS Tuning | |||
| 24 | Guard for fuel pipe | 1 | 16121181550 | $3.17 | Shop at ECS Tuning | |||||
| 25 | Hex bolt with washer | M6X16-U1-8.8 | 1 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 26 | Spring clip | 2 | 13322243853 | $2.95 | ENDED | Shop at ECS Tuning | ||||
| 27 | O-ring | 1 | 13322246976 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
