Fuel injection system Diesel for BMW 3 Series E36 318tds (1996)

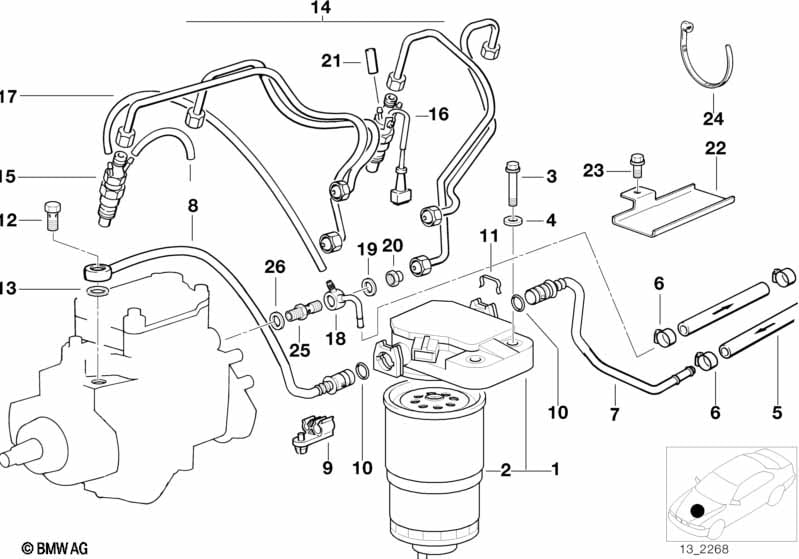

This Fuel injection system Diesel technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fuel strainer with heating | 1 | 13322244982 | $167.40 | ENDED | Shop at ECS Tuning | ||||
| 02 | Filter cartridge | 1 | 13327786647 | $48.98 | Shop at ECS Tuning | |||||
| 03 | Hex bolt | M8X40-ZNNIV SI | 2 | 07119905549 | $1.05 | Shop at ECS Tuning | ||||
| 04 | Washer | 8,4X16X1,6-ZNNV | 1 | 07119907030 | Shop at ECS Tuning | |||||
| 05 | Fuel hose | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Holder | 1 | 12521285040 | $2.37 | Shop at ECS Tuning | |||||
| 06 | Hose clamp | L12-15 | 3 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Holder | 1 | 12521285040 | $2.37 | Shop at ECS Tuning | |||||
| 07 | Fuel supply line | 1 | 13532244448 | $21.32 | Shop at ECS Tuning | |||||
| 08 | Fuel supply line | 1 | 13532245597 | Shop at ECS Tuning | ||||||
| 09 | Clip | AKF | 1 | 16131181031 | $1.62 | Shop at ECS Tuning | ||||
| 10 | O-ring | 13X1,5 | 4 | 13532243717 | $1.88 | Shop at ECS Tuning | ||||
| 11 | Spring clip | 2 | 13322243853 | $2.95 | ENDED | Shop at ECS Tuning | ||||
| 12 | Hollow bolt | 1 | 01/2005 | 11421338506 | $15.92 | Shop at ECS Tuning | ||||
| 12 | Hollow bolt | 1 | 07119905427 | $2.25 | Shop at ECS Tuning | |||||
| 13 | Gasket ring | A12X15,5 AL | 2 | 07119963130 | $0.09 | Shop at ECS Tuning | ||||
| 14 | Injection pipe | 1 | 13532245852 | ENDED | Shop at ECS Tuning | |||||
| 15 | Injection nozzle | 3 | 13512245810 | $204.30 | Shop at ECS Tuning | |||||
| 16 | Injection nozzle with transmitter | 1 | 13532245811 | $273.42 | Shop at ECS Tuning | |||||
| 17 | Fuel hose | 3X7MM | X | 13532246959 | $33.57 | Shop at ECS Tuning | ||||
| 18 | Connector | DDE2.1 | 1 | 13512246147 | Shop at ECS Tuning | |||||
| 19 | Gasket ring | A12X17-AL | 2 | 07119963150 | $0.09 | Shop at ECS Tuning | ||||
| 20 | Cap nut | 1 | 13512245573 | Shop at ECS Tuning | ||||||
| 21 | Cap | 3,0MM/FPM | 1 | 13532246127 | $1.87 | ENDED | Shop at ECS Tuning | |||
| 22 | Guard for fuel pipe | 1 | 16121181550 | $3.17 | Shop at ECS Tuning | |||||
| 23 | Hex bolt with washer | M6X16-U1-8.8 | 1 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 24 | Cable tie | L=100MM/B=2,5MM | 1 | 61131372391 | $0.08 | Shop at ECS Tuning | ||||
