Press.accumulator/distributor/injector for BMW 7 Series E38 740d (2000)

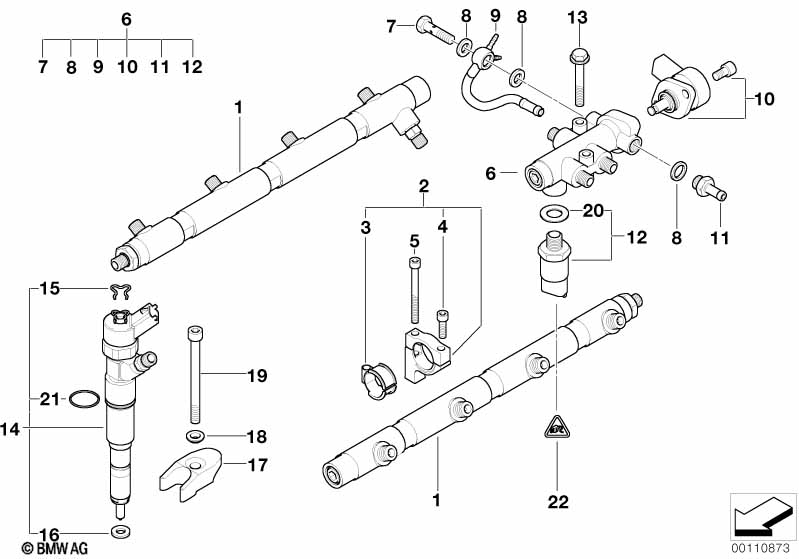

This Press.accumulator/distributor/injector technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pressure accumulator | 2 | 13537805724 | Shop at ECS Tuning | ||||||
| 02 | Support | 6 | 13532248326 | Shop at ECS Tuning | ||||||
| 03 | Decoupling element | 6 | 13532249389 | Shop at ECS Tuning | ||||||
| 04 | ISA screw | M6X20-8.8-ZNNIV | 6 | 07129901130 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Fillister-head screw | M6X65-8.8-ZNS3 | 6 | 07119903008 | $2.25 | Shop at ECS Tuning | ||||
| 06 | Fuel distributor | 1 | 13537805723 | ENDED | Shop at ECS Tuning | |||||
| 07 | Hollow bolt | M12X1,5 | 1 | 13532249311 | ENDED | Shop at ECS Tuning | ||||
| 08 | Gasket ring | 3 | 13532249674 | Shop at ECS Tuning | ||||||
| 09 | Connector | 1 | 13532249310 | ENDED | Shop at ECS Tuning | |||||
| 10 | Pressure regulating valve | 1 | 13532249309 | Shop at ECS Tuning | ||||||
| 11 | Connector | M12X1,5 | 1 | 13532249312 | ENDED | Shop at ECS Tuning | ||||
| 12 | Pressure sensor | 1 | 13537812345 | $272.40 | Shop at ECS Tuning | |||||
| 13 | Hex bolt with washer | M6X40 ZNNIV SI | 2 | 07119904525 | $1.09 | Shop at ECS Tuning | ||||
| 14 | RP injector | 8 | 13532354000 | Shop at ECS Tuning | ||||||
| 15 | Clamp | 8 | 13532247856 | $7.82 | Shop at ECS Tuning | |||||
| 16 | Gasket ring | 8 | 13532247156 | $3.63 | Shop at ECS Tuning | |||||
| 17 | Bracket injector | 8 | 13532248427 | Shop at ECS Tuning | ||||||
| 18 | Ball Cup | 8 | 13532248428 | Shop at ECS Tuning | ||||||
| 19 | Fillister-head screw | M8X90-10.9-ZNS3 | 8 | 07119904106 | Shop at ECS Tuning | |||||
| 20 | Washer-gasket | 1 | 13537786471 | Shop at ECS Tuning | ||||||
| 22 | Plug housing | 1 | 12512247472 | ENDED | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Bushing contact | 0,35 MM² | X | 12512247474 | $2.03 | Shop at ECS Tuning | ||||
| -- | Bushing contact | 1,5 - 2,5 MM² | X | 12512247475 | $2.03 | Shop at ECS Tuning | ||||
