Hot-film air mass meter for BMW 3 Series E46 330i (2001)

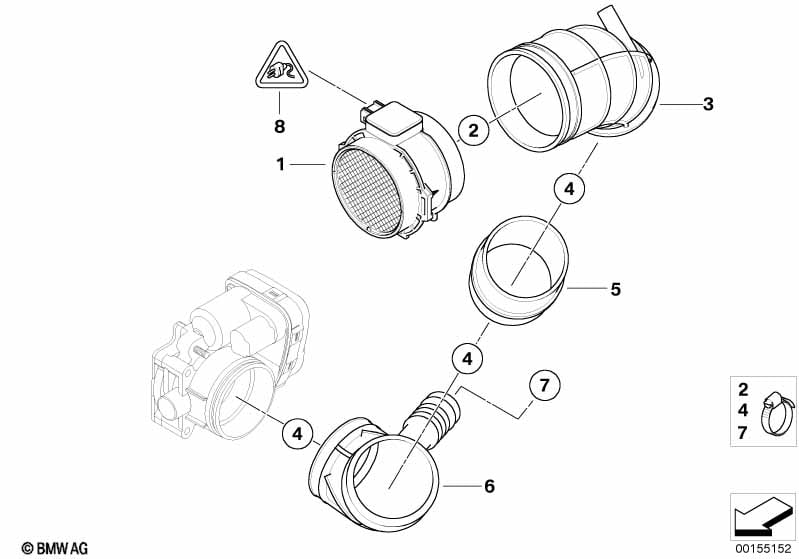

This Hot-film air mass meter technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hot-film air mass meter | 1 | 13627567451 | $402.32 | Shop at ECS Tuning | |||||
| 02 | Hose clamp | L95-102 | 1 | 07129952137 | $1.52 | Shop at ECS Tuning | ||||
| 03 | Rubber boot | 1 | 13541438761 | $28.30 | Shop at ECS Tuning | |||||
| 04 | Hose clamp | L83-90 | 3 | 07129952133 | $1.78 | Shop at ECS Tuning | ||||
| 05 | Ring | 1 | 13541438760 | $1.93 | Shop at ECS Tuning | |||||
| 06 | Tube elbow | 1 | 13541438759 | $13.88 | Shop at ECS Tuning | |||||
| 07 | Hose clamp | L28-33 | 1 | 07129952113 | $0.96 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 330i Hot-film air mass meter?
- This technical diagram illustrates the Hot-film air mass meter within the Fuel preparation system group for the 3 Series E46 330i produced during 2001. It provides a detailed exploded view of the components, identifying key parts such as the Hot-film air mass meter (Part #13627567451).
- Which models use the hardware listed in this Hot-film air mass meter?
- The hardware and components featured in the Hot-film air mass meter are specific to the 3 Series E46 330i produced during 2001. These technical specifications ensure that parts like the Hot-film air mass meter (13627567451) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Hot-film air mass meter assembly?
- Each item in the Hot-film air mass meter corresponds to the numbered list below the illustration. For the 3 Series E46 330i, you can identify the Hot-film air mass meter by locating its position on the schematic, which then links to the official BMW part number 13627567451 for the Fuel preparation system section.
