Intake muffler/Filter cartridge/HFM for BMW 5 Series E60 LCI 530i (2009)

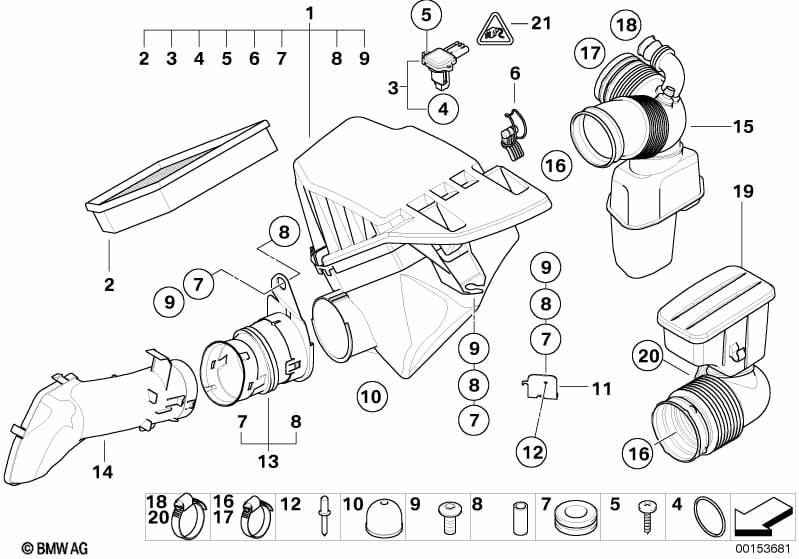

This Intake muffler/Filter cartridge/HFM technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Intake muffler | 1 | 13717577779 | Shop at ECS Tuning | ||||||
| 02 | Air filter element | 1 | 13717521033 | $31.60 | Shop at ECS Tuning | |||||
| 03 | Hot-film air mass meter | 1 | 13627551638 | $306.24 | Shop at ECS Tuning | |||||
| 04 | O-ring | 1 | 13627532318 | $3.11 | Shop at ECS Tuning | |||||
| 05 | Torx screw | 5X18 | 2 | 13627531817 | $0.60 | Shop at ECS Tuning | ||||
| 06 | Tensioner | 3 | 13717525713 | $1.41 | Shop at ECS Tuning | |||||
| 07 | Rubber grommet | 3 | 13711702508 | $3.34 | Shop at ECS Tuning | |||||
| 08 | Sleeve | 3 | 13717525711 | $3.95 | Shop at ECS Tuning | |||||
| 09 | Fillister head screw | 2 | 07147072901 | $0.53 | Shop at ECS Tuning | |||||
| 10 | Rubber buffer | 1 | 13717539903 | $6.32 | Shop at ECS Tuning | |||||
| 11 | Bracket. intake silencer | 1 | 13717521015 | $7.68 | Shop at ECS Tuning | |||||
| 12 | Blind rivet | 4,8 | 2 | 07129948780 | $0.38 | ENDED | Shop at ECS Tuning | |||
| 13 | Intake duct | 1 | 13717521016 | $34.20 | Shop at ECS Tuning | |||||
| 14 | Intake duct | 1 | 13717521011 | $34.20 | Shop at ECS Tuning | |||||
| 16 | Hose clamp | L83-90 | 1 | 07129952133 | $1.78 | Shop at ECS Tuning | ||||
| 19 | Rubber boot with resonator | 1 | 13717577788 | Shop at ECS Tuning | ||||||
| 20 | Hose clamp | L89-96 | 1 | 07129952135 | $2.18 | Shop at ECS Tuning |
