Hot-film air mass meter/clean air pipe for BMW 5 Series E60 LCI 520d (2007)

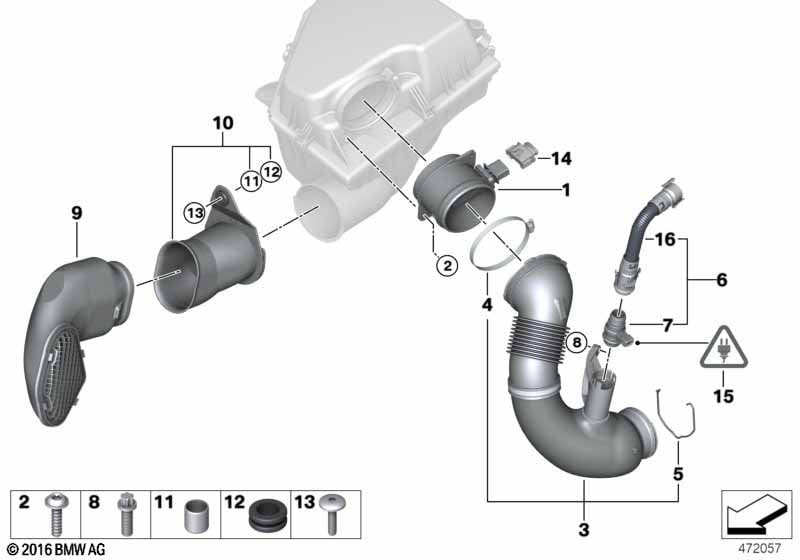

This Hot-film air mass meter/clean air pipe technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hot-film air mass meter | 1 | 13628509725 | Shop at ECS Tuning | ||||||
| 02 | Screw for thermoplastic plastics | 60X22 | 2 | 13627805193 | $0.53 | Shop at ECS Tuning | ||||
| 03 | Filtered air pipe | 1 | 13717801547 | Shop at ECS Tuning | ||||||
| 04 | Hose clamp | L95-102 | 1 | 07129952137 | $1.52 | Shop at ECS Tuning | ||||
| 05 | Spring clip | 1 | 17517802664 | $2.88 | Shop at ECS Tuning | |||||
| For vehicles with Cold-climate version |
S842A=Yes |
|||||||||
| 06 | Pipe with heating element | 1 | 13718516241 | Shop at ECS Tuning | ||||||
| 07 | Heater element | 1 | 13717787941 | $62.02 | +core | Shop at ECS Tuning | ||||
| 08 | Torx bolt | M6X20-ZNNIV SI | 1 | 07129905568 | $0.44 | Shop at ECS Tuning | ||||
| 08 | Collar screw | M6X18-ZNS3 | 1 | 11537804636 | $0.60 | Shop at ECS Tuning | ||||
| 08 | Torx bolt | BM6X20-8.8-ZNS3 | 1 | 07119907243 | Shop at ECS Tuning | |||||
| 09 | Intake duct | 1 | 13717796692 | Shop at ECS Tuning | ||||||
| 10 | Intake duct | 1 | 13717792417 | $34.20 | Shop at ECS Tuning | |||||
| 11 | Sleeve | 1 | 13717525711 | $3.95 | Shop at ECS Tuning | |||||
| 12 | Rubber grommet | 1 | 13711702508 | $3.34 | Shop at ECS Tuning | |||||
| 13 | Fillister head screw | 1 | 07147072901 | $0.53 | Shop at ECS Tuning | |||||
| 14 | Plug housing | 5 POLIG | 1 | 12521433204 | $3.52 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Socket terminal SLK 2.8 ELA with wire | 0,2- 0,5MM²/AG | 1 | 12520143427 | $2.03 | Shop at ECS Tuning | ||||
| -- | Socket terminal SLK 2.8 ELA with wire | 0,5- 1,0 MM²/AG | 1 | 12520143433 | $4.00 | Shop at ECS Tuning | ||||
| -- | Grommet | 1 | 12521707749 | $3.47 | Shop at ECS Tuning | |||||
| 16 | Pipe | 1 | 13717803842 | Shop at ECS Tuning | ||||||
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 LCI 520d Hot-film air mass meter/clean air pipe?
- This technical diagram illustrates the Hot-film air mass meter/clean air pipe within the Fuel preparation system group for the 5 Series E60 LCI 520d produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the Hot-film air mass meter (Part #13628509725).
- Which models use the hardware listed in this Hot-film air mass meter/clean air pipe?
- The hardware and components featured in the Hot-film air mass meter/clean air pipe are specific to the 5 Series E60 LCI 520d produced during 2007. These technical specifications ensure that parts like the Hot-film air mass meter (13628509725) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Hot-film air mass meter/clean air pipe assembly?
- Each item in the Hot-film air mass meter/clean air pipe corresponds to the numbered list below the illustration. For the 5 Series E60 LCI 520d, you can identify the Hot-film air mass meter by locating its position on the schematic, which then links to the official BMW part number 13628509725 for the Fuel preparation system section.
