Fuel tank breath.valve/disturb.air valve for BMW 8 Series E31 840Ci

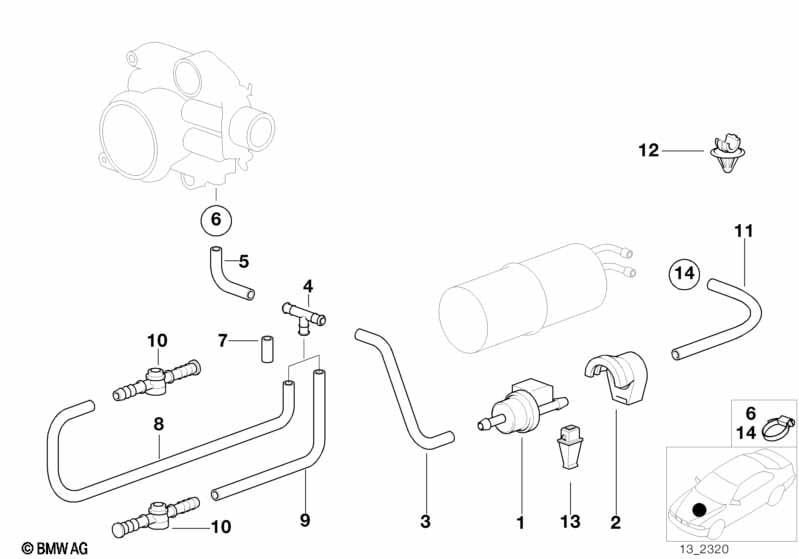

This Fuel tank breath.valve/disturb.air valve technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 840Ci. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fuel tank breather valve | 1 | 13901744150 | $82.88 | Shop at ECS Tuning | |||||
| 02 | Bracket ventilation valve | 1 | 13901740461 | $3.75 | Shop at ECS Tuning | |||||
| 03 | Fuel hose | 1 | 13901742789 | $34.20 | Shop at ECS Tuning | |||||
| 04 | Distribution piece | 1 | 16121182197 | $2.17 | Shop at ECS Tuning | |||||
| 05 | Hose | 1 | 13901702840 | $28.46 | Shop at ECS Tuning | |||||
| 07 | Cap | D=7,0MM | 1 | 11611727176 | $3.39 | Shop at ECS Tuning | ||||
| For vehicles with National version Germany |
L801A=Yes |
|||||||||
| 09 | Hose | 1 | 13901742790 | Shop at ECS Tuning | ||||||
| 10 | Disturbance air valve | D=2,4MM | 1 | 11641247678 | Shop at ECS Tuning | |||||
| 11 | Fuel hose | 6X11MM | X | 13311272750 | $11.62 | Shop at ECS Tuning | ||||
| For vehicles with National version Germany |
L801A=Yes |
|||||||||
| 12 | Clip | D=8MM | 1 | 13311738201 | $0.62 | Shop at ECS Tuning | ||||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 13 | Resistor | 1000OHM/BOSCH | 1 | 13901734469 | $6.33 | Shop at ECS Tuning | ||||

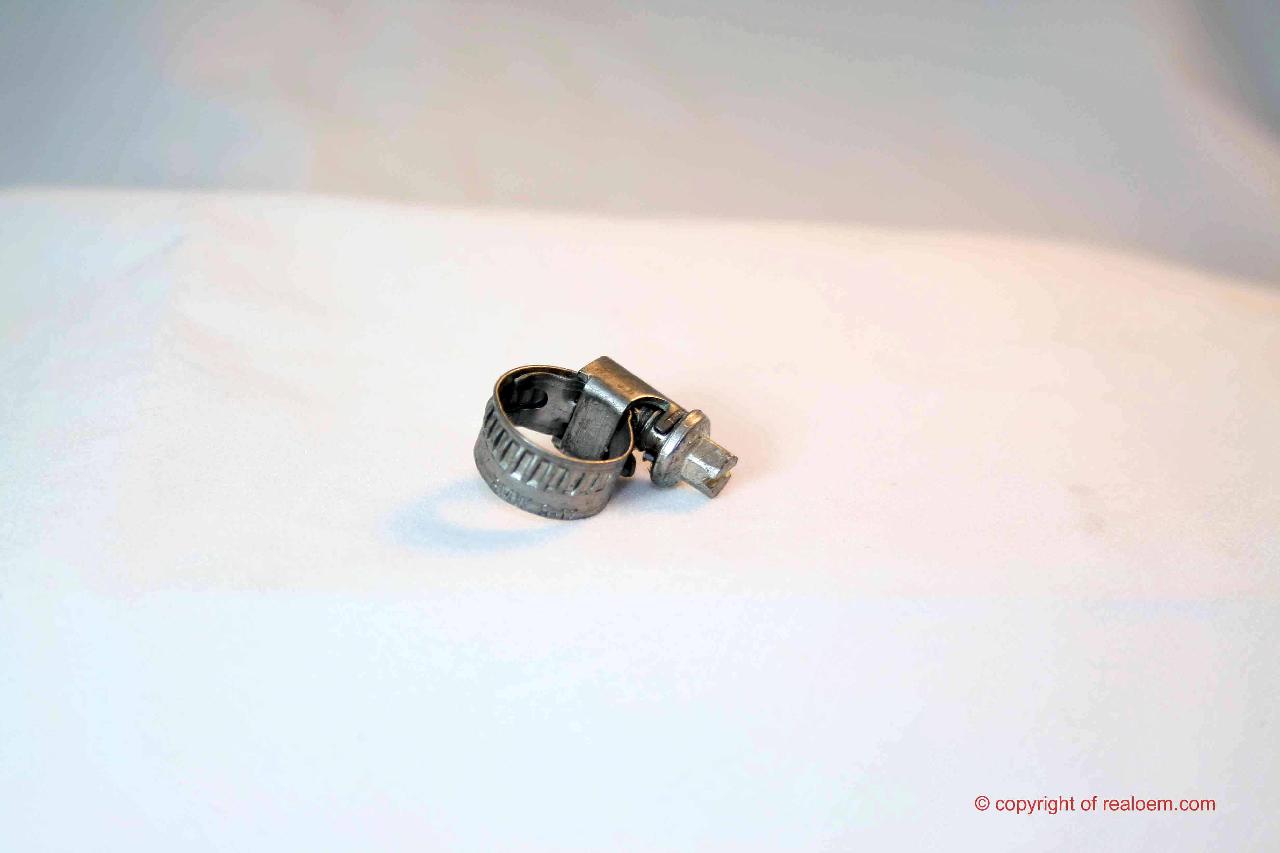

| 14 | Hose clamp | L=9-12 | 1 | 07129952102 | $1.18 | Shop at ECS Tuning | ||||
