Expansion tank/tubing/pressure sensor for BMW 3 Series E36 328i (1998)

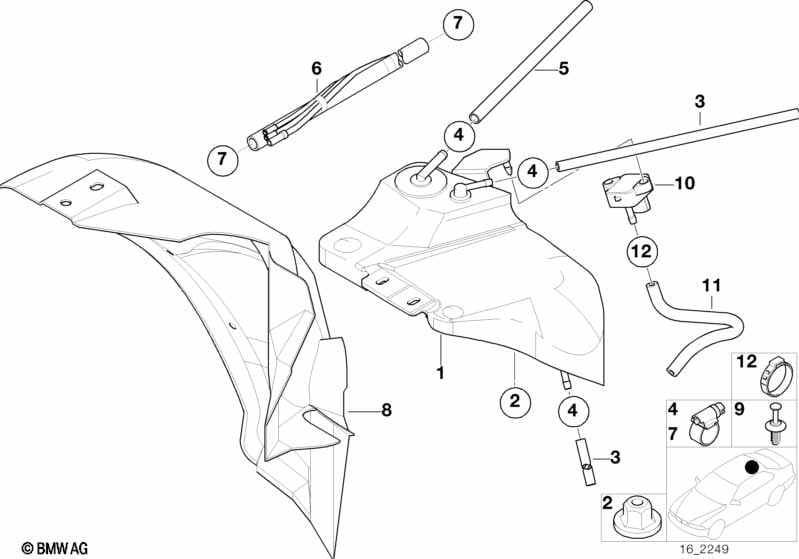

This Expansion tank/tubing/pressure sensor technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Expansion tank | OBD II | 1 | 16131183056 | $92.35 | +core | Shop at ECS Tuning | |||
| 02 | Plastic nut | 3 | 51711958025 | $0.26 | Shop at ECS Tuning | |||||
| 03 | Fuel hose | E6X11MM/FPM | X | 16127175977 | $28.20 | Shop at ECS Tuning | ||||
| 04 | Hose clamp | L12-15 | X | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 05 | Fuel hose | 8X13MMX1000 | X | 13537563456 | $44.77 | Shop at ECS Tuning | ||||
| 06 | Vent pipe | RUNNING LOSS | 1 | 16111182814 | $91.18 | ENDED | Shop at ECS Tuning | |||
| 07 | Hose clamp | L16-30 | 4 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 08 | Stone-chip guard | 1 | 16132227852 | $26.33 | Shop at ECS Tuning | |||||
| 09 | Expanding rivet | D = 6MM | 3 | 51111908077 | $0.30 | Shop at ECS Tuning | ||||
| 10 | Fuel tank pressure sensor | 1 | 16141182581 | $146.63 | Shop at ECS Tuning | |||||
| 11 | Pressure hose assy | OBD-2 | 1 | 16141183148 | $29.13 | Shop at ECS Tuning | ||||
| 12 | Hose clamp | D=10,8-13,3 | 2 | 32411156956 | $0.62 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 328i Expansion tank/tubing/pressure sensor?
- This technical diagram illustrates the Expansion tank/tubing/pressure sensor within the Fuel Supply group for the 3 Series E36 328i produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Expansion tank (Part #16131183056).
- Which models use the hardware listed in this Expansion tank/tubing/pressure sensor?
- The hardware and components featured in the Expansion tank/tubing/pressure sensor are specific to the 3 Series E36 328i produced during 1998. These technical specifications ensure that parts like the Expansion tank (16131183056) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Expansion tank/tubing/pressure sensor assembly?
- Each item in the Expansion tank/tubing/pressure sensor corresponds to the numbered list below the illustration. For the 3 Series E36 328i, you can identify the Expansion tank by locating its position on the schematic, which then links to the official BMW part number 16131183056 for the Fuel Supply section.
