Engine oil cooling for BMW 3 Series E36 325tds (1997)

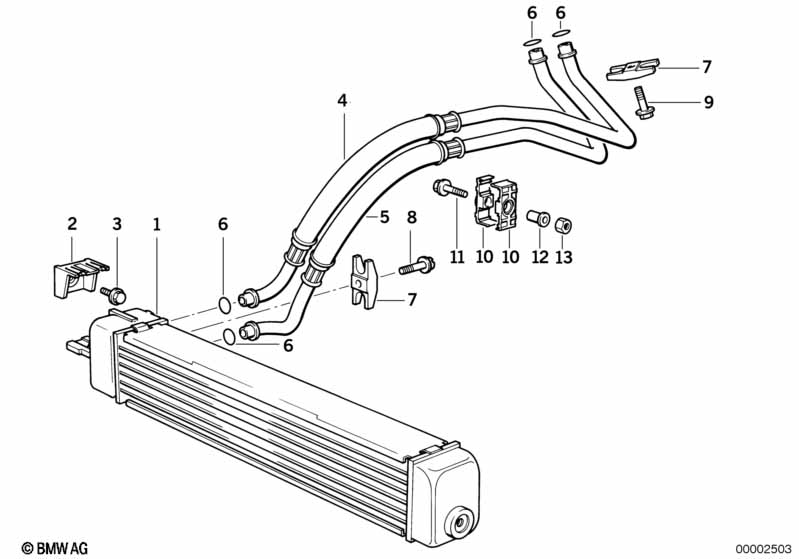

This Engine oil cooling technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1997.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil cooler | 1 | 17212244741 | ENDED | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Sealing strip | 520X20X50 | 1 | 17112245591 | Shop at ECS Tuning | |||||
| For vehicles with Air conditioning |
S530A=Yes |
|||||||||
| 01 | Oil cooler | 1 | 17212244741 | ENDED | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Sealing strip | 1 | 17112245970 | Shop at ECS Tuning | ||||||
| 02 | Bracket oil cooler mounting | 1 | 17512243659 | $4.12 | Shop at ECS Tuning | |||||
| 03 | Hex bolt | M6X20-Z4 | 1 | 11652243770 | $1.07 | ENDED | Shop at ECS Tuning | |||
| 04 | Oil cooling pipe inlet | 1 | 17222246620 | Shop at ECS Tuning | ||||||
| 04 | Oil cooling pipe inlet | 1 | 09/1993 | 17222246620 | Shop at ECS Tuning | |||||
| 05 | Oil cooling pipe outlet | 1 | 17222246621 | Shop at ECS Tuning | ||||||
| 05 | Oil cooling pipe outlet | 1 | 09/1993 | 17222246621 | Shop at ECS Tuning | |||||
| 06 | O-ring | 13,4X1,78 | 4 | 17222245358 | $1.18 | Shop at ECS Tuning | ||||
| 07 | Bracket oil pipe | 2 | 17212243052 | $8.28 | Shop at ECS Tuning | |||||
| 08 | Hex bolt with washer | M8X35-Z3 | 1 | 07119912492 | $0.33 | Shop at ECS Tuning | ||||
| 09 | Hex bolt with washer | M8X35-Z3 | 1 | 07119912492 | $0.33 | Shop at ECS Tuning | ||||
| 10 | Bracket oil pipe | 2 | 17201712209 | $3.52 | Shop at ECS Tuning | |||||
| 12 | Spacer sleeve | D6 | 1 | 17227798686 | $3.32 | Shop at ECS Tuning | ||||
| 13 | Self-locking hex nut | M6 ZNNIV SI | 1 | 09/1993 | 07147575163 | $0.25 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Washer | A6,4-200HV-ZNS3 | 1 | 09/1993 | 07119903791 | $0.11 | Shop at ECS Tuning | |||
