Heat exch./transmission oil cooler line for BMW 5 Series E61 530d (2006)

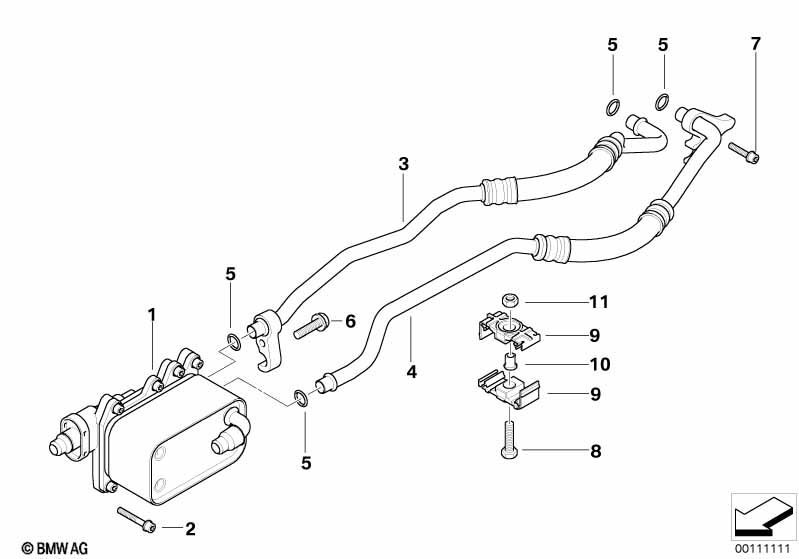

This Heat exch./transmission oil cooler line technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 530d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Heat exchanger | 1 | 17217803830 | Shop at ECS Tuning | ||||||
| 02 | Hex bolt with washer | M6X30-U2-ZNS3 | 2 | 07119903994 | $0.65 | Shop at ECS Tuning | ||||
| 03 | Oil cooling pipe inlet | 1 | 17227794576 | Shop at ECS Tuning | ||||||
| 04 | Oil cooling pipe outlet | 1 | 17227794577 | Shop at ECS Tuning | ||||||
| 05 | O-ring | 13,4X1,78 | 4 | 17222245358 | $1.18 | Shop at ECS Tuning | ||||
| 06 | Hex bolt with washer | M6X30-U2-ZNS3 | 1 | 07119903994 | $0.65 | Shop at ECS Tuning | ||||
| 07 | Screw | M8X28-Z3 | 1 | 17227555715 | $0.78 | Shop at ECS Tuning | ||||
| 08 | Hex bolt | M6X35-8.8-ZNS3 | 1 | 07119902998 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Bracket oil pipe | 2 | 17201712209 | $3.52 | Shop at ECS Tuning | |||||
| 10 | Spacer sleeve | D6 | 1 | 17227798686 | $3.32 | Shop at ECS Tuning | ||||
| 11 | Hex nut | 1 | 07129906887 | $0.56 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E61 530d Heat exch./transmission oil cooler line?
- This technical diagram illustrates the Heat exch./transmission oil cooler line within the Radiator group for the 5 Series E61 530d produced during 2006. It provides a detailed exploded view of the components, identifying key parts such as the Heat exchanger (Part #17217803830).
- Which models use the hardware listed in this Heat exch./transmission oil cooler line?
- The hardware and components featured in the Heat exch./transmission oil cooler line are specific to the 5 Series E61 530d produced during 2006. These technical specifications ensure that parts like the Heat exchanger (17217803830) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Heat exch./transmission oil cooler line assembly?
- Each item in the Heat exch./transmission oil cooler line corresponds to the numbered list below the illustration. For the 5 Series E61 530d, you can identify the Heat exchanger by locating its position on the schematic, which then links to the official BMW part number 17217803830 for the Radiator section.
