Catalyst/lambda probe for BMW 3 Series E36 328i (1995)

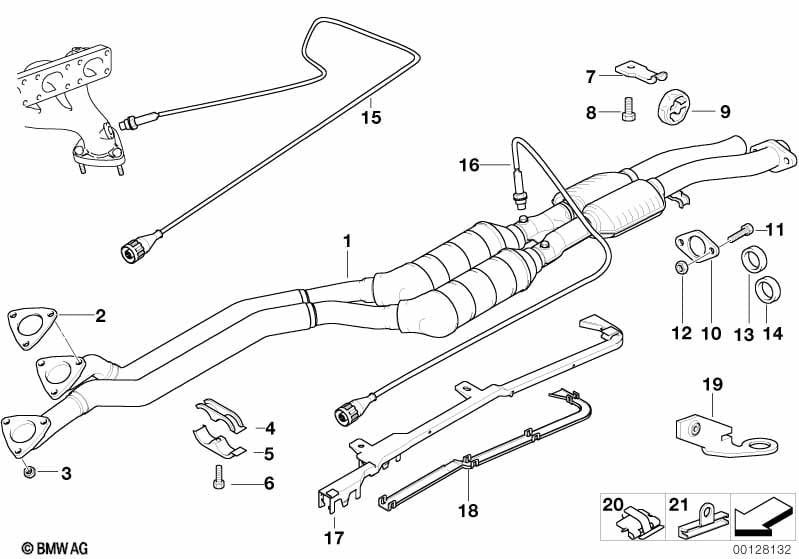

This Catalyst/lambda probe technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP catalytic converter | 1 | 18301740997 | $1772.19 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 01 | Exhaust pipe front silencer | 1 | 18301740994 | $864.90 | Shop at ECS Tuning | |||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | RP catalytic converter | 1 | 09/1997 | 18301740996 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version israel or National version Australia or National version eastern europe or National version latin america or National version south africa or Hot-climate version |
L808A=Yes L810A=Yes L816A=Yes L820A=Yes L824A=Yes S823A=Yes |
|||||||||
| 01 | RP catalytic converter | 1 | 18301740995 | ENDED | Shop at ECS Tuning | |||||
| 02 | Gasket Asbestos Free | 2 | 18301716888 | $11.75 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Hex nut | M10 | 6 | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
| 03 | Hex nut | M10 | 6 | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
| 06 | Hex bolt | M8X50 | 1 | 07119904533 | $2.84 | Shop at ECS Tuning | ||||
| 07 | Bracket | 2 | 18211723649 | $3.95 | Shop at ECS Tuning | |||||
| 08 | Hex bolt | M8X12 | 2 | 07119902914 | $0.47 | Shop at ECS Tuning | ||||
| 09 | Rubber Ring | 2 | 18301703634 | $4.50 | Shop at ECS Tuning | |||||
| 10 | Flange | 1 | 18111719444 | $10.39 | Shop at ECS Tuning | |||||
| 11 | Hex bolt | M8X55-8.8 | 4 | 07119902957 | $5.27 | Shop at ECS Tuning | ||||
| 12 | Hex nut | M8 SW12 | 4 | 11621744323 | $0.85 | Shop at ECS Tuning | ||||
| 12 | Hex nut wiht flange | M8 | 4 | 18307620549 | Shop at ECS Tuning | |||||
| 13 | Gasket ring asbesto-free | 1 | 18111723721 | Shop at ECS Tuning | ||||||
| 14 | Gasket ring | 48MM | 1 | 18111719446 | $8.37 | Shop at ECS Tuning | ||||
| 15 | Oxygen sensor | SIEMENS | 2 | 09/1995 | 11781748762 | SI 120995022 | Shop at ECS Tuning | |||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 15 | Temperature sensor | 2 | 09/1997 | 61318363636 | ENDED, +core | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- SI = Service Information
- +core = plus core charge (possibility of a return of the old part)
