Diesel catalyst for BMW 3 Series E46 320td (2004)
This Diesel catalyst technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Automatic transmission Consider the customer and the environment, install a retrofit diesel particulate filter instead of a replacement precatalyst! For additional information see HG18 FG10 |
S205A=Yes |
|||||||||
| 01 | RP catalytic conv.close to the engine | 1 | 09/2001 | 18307792160 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission Consider the customer and the environment, install a retrofit diesel particulate filter instead of a replacement precatalyst! For additional information see HG18 FG10 |
S205A=No |
|||||||||
| 01 | RP catalytic conv.close to the engine | 1 | 09/2001 | 18307787586 | Shop at ECS Tuning | |||||
| For vehicles with EU4 exhaust emissions standard and Automatic transmission Consider the customer and the environment, install a retrofit diesel particulate filter instead of a replacement precatalyst! For additional information see HG18 FG10 |
S167A=Yes S205A=No |
|||||||||
| 01 | RP catalytic conv.close to the engine | 1 | 03/2004 | 18307790298 | Shop at ECS Tuning | |||||
| 02 | RP catalytic converter | 1 | 18327789040 | Shop at ECS Tuning | ||||||
| For vehicles with EU4 exhaust emissions standard |
S167A=Yes |
|||||||||
| 02 | RP catalytic converter | 1 | 18327790643 | Shop at ECS Tuning | ||||||
| 03 | Hex nut | M10 | 2 | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
| 04 | Connecting support | 1 | 18211436309 | $11.66 | Shop at ECS Tuning | |||||
| 05 | Hex bolt with washer | M8X18-U1-8.8 | 4 | 09/2001 | 07119905529 | $0.96 | Shop at ECS Tuning | |||
| 06 | Stopper | 1 | 18202249249 | Shop at ECS Tuning | ||||||
| 07 | Clamping bush | D=60 X 70MM | 1 | 18307560779 | $34.61 | Shop at ECS Tuning | ||||
| 08 | Hex bolt | M8X50 | 3 | 07119904533 | $2.84 | Shop at ECS Tuning | ||||
| 09 | Hex nut | M8 SW12 | 3 | 11621744323 | $0.85 | Shop at ECS Tuning | ||||
| 10 | Hex bolt with washer | M8X14 ZNNIV SI | 3 | 09/2001 | 07119905527 | $0.47 | Shop at ECS Tuning | |||
| 11 | Self-locking collar nut | M8-10 ZNS3 | 1 | 09/2001 | 07119905374 | Shop at ECS Tuning | ||||
| 13 | Rod | 2 | 18202249289 | Shop at ECS Tuning | ||||||
| For vehicles with Manual Transmission |
=Yes |
|||||||||
| 14 | Holder catalytic converter near engine | 1 | 09/2001 | 18207787599 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 14 | Holder catalytic converter near engine | 1 | 09/2001 | 18207787600 | Shop at ECS Tuning | |||||
| For vehicles with EU4 exhaust emissions standard |
S167A=Yes |
|||||||||
| 15 | Oxygen sensor | L=530MM | 1 | 03/2004 | 13627793825 | Shop at ECS Tuning | ||||
| 16 | Clip | 1 | 03/2004 | 12521437136 | $0.63 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 320td Diesel catalyst?

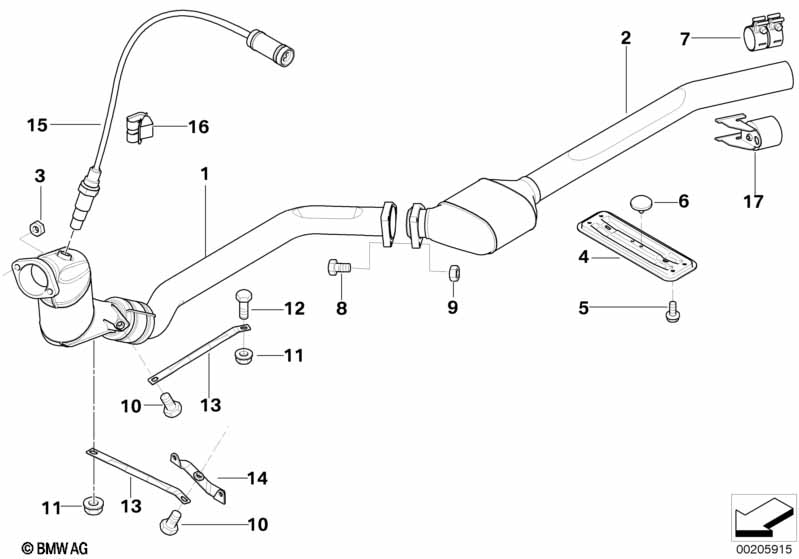

- This technical diagram illustrates the Diesel catalyst within the Exhaust system group for the 3 Series E46 320td produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the RP catalytic conv.close to the engine (Part #18307792160).
