Exhaust pipe, catalytic converter for BMW 5 Series E39 540i (2001)

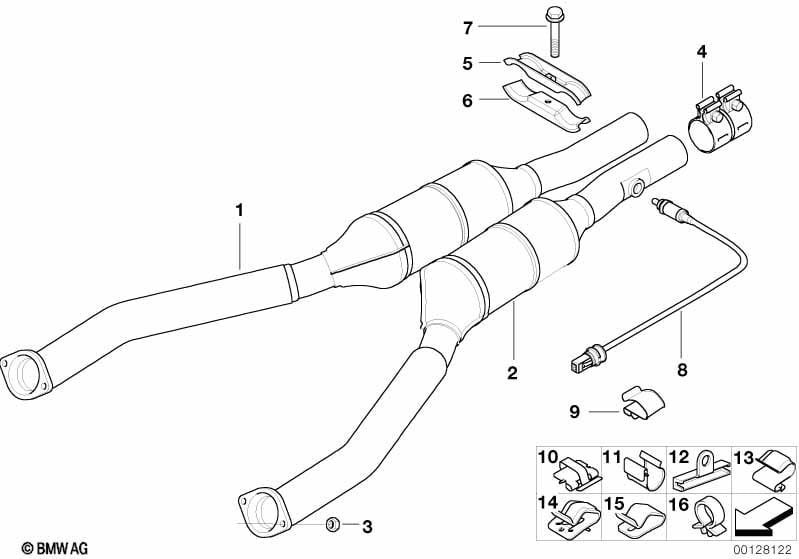

This Exhaust pipe, catalytic converter technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 540i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP exhaust pipe cat.conv.cylinder 1-4 | ZYL.1-4 | 1 | 09/1998 | 18301437546 | $1719.05 | Shop at ECS Tuning | |||
| 02 | RP exhaust pipe cat.conv.cylinder 5-8 | ZYL.5-8 | 1 | 09/1998 | 18301437545 | $1719.05 | Shop at ECS Tuning | |||
| 03 | Collar nut | M8 | 4 | 09/1998 | 18107523805 | $2.55 | Shop at ECS Tuning | |||
| 04 | Clamping bush | D=55 X 70MM | 1 | 09/1998 | 18307560778 | $34.61 | Shop at ECS Tuning | |||
| 08 | Lambda Monitor sensor | L=580MM | 2 | 09/1998 | 11781742051 | $215.65 | +core | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 540i Exhaust pipe, catalytic converter?
- This technical diagram illustrates the Exhaust pipe, catalytic converter within the Exhaust system group for the 5 Series E39 540i produced during 2001. It provides a detailed exploded view of the components, identifying key parts such as the RP exhaust pipe cat.conv.cylinder 1-4 (Part #18301437546).
- Which models use the hardware listed in this Exhaust pipe, catalytic converter?
- The hardware and components featured in the Exhaust pipe, catalytic converter are specific to the 5 Series E39 540i produced during 2001. These technical specifications ensure that parts like the RP exhaust pipe cat.conv.cylinder 1-4 (18301437546) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Exhaust pipe, catalytic converter assembly?
- Each item in the Exhaust pipe, catalytic converter corresponds to the numbered list below the illustration. For the 5 Series E39 540i, you can identify the RP exhaust pipe cat.conv.cylinder 1-4 by locating its position on the schematic, which then links to the official BMW part number 18301437546 for the Exhaust system section.
