Catalyser/Diesel particulate filter for BMW 1 Series E87 120d (2006)

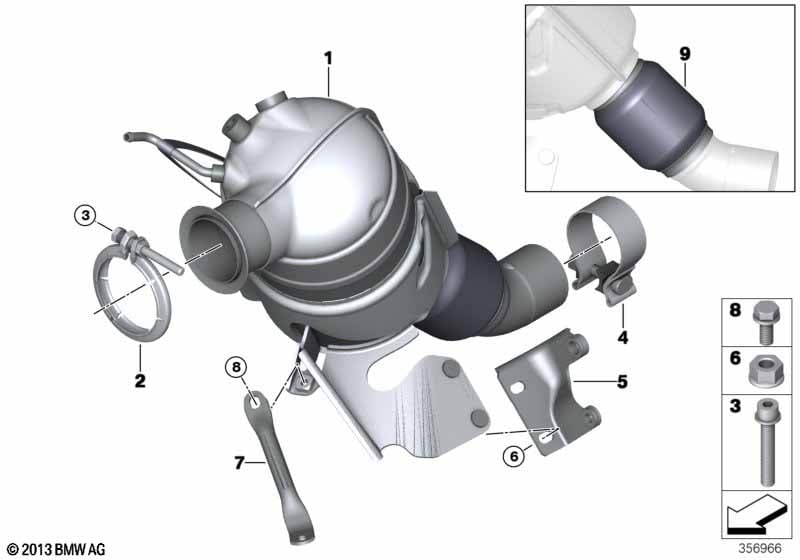

This Catalyser/Diesel particulate filter technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 120d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Diesel particle filter |
S200A=Yes |
|||||||||
| 01 | RP diesel particulate filter | 1 | 18307798309 | ENDED | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Muffler clamp | D=60,6 X 31,8MM | 1 | 18307793025 | Shop at ECS Tuning | |||||
| -- | Screw clamp | 1 | 18308512137 | Shop at ECS Tuning | ||||||
| -- | Gasket | 1 | 18308518970 | Shop at ECS Tuning | ||||||
| 02 | Screw clamp | 1 | 18308512137 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Gasket | 1 | 18308518970 | Shop at ECS Tuning | ||||||
| 03 | Fillister-head screw | M8X50-8.8-ZNS3 | 1 | 07119904436 | Shop at ECS Tuning | |||||
| 04 | Muffler clamp | D=60,6 X 31,8MM | 1 | 18307793025 | Shop at ECS Tuning | |||||
| 04 | Muffler clamp | D=66,6 X 31,8MM | 1 | 18308506992 | Shop at ECS Tuning | |||||
| 05 | Holder catalytic converter near engine | 1 | 18207793211 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 05 | Holder catalytic converter near engine | 1 | 18207793212 | Shop at ECS Tuning | ||||||
| 06 | Hex nut | BM8-8-ZNNIV-SI | 2 | 07129904874 | Shop at ECS Tuning | |||||
| For vehicles with EU3 exhaust emissions standard |
S169A=Yes |
|||||||||
| 06 | Flange nut | M8 | 2 | 07143413174 | $0.36 | Shop at ECS Tuning | ||||
| For vehicles with Diesel particle filter |
S200A=Yes |
|||||||||
| 07 | Rod | 1 | 18207795753 | Shop at ECS Tuning | ||||||
| 08 | Hex bolt with washer | M8X20-U1-8.8 | 2 | 07119904992 | $0.55 | Shop at ECS Tuning | ||||
| 09 | Decoupling element | VALUE PARTS | 1 | 18307803523 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | RP diesel particulate filter | X | 18307798309 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series E87 120d Catalyser/Diesel particulate filter?
- This technical diagram illustrates the Catalyser/Diesel particulate filter within the Exhaust system group for the 1 Series E87 120d produced during 2006. It provides a detailed exploded view of the components, identifying key parts such as the RP diesel particulate filter (Part #18307798309).
- Which models use the hardware listed in this Catalyser/Diesel particulate filter?
- The hardware and components featured in the Catalyser/Diesel particulate filter are specific to the 1 Series E87 120d produced during 2006. These technical specifications ensure that parts like the RP diesel particulate filter (18307798309) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Catalyser/Diesel particulate filter assembly?
- Each item in the Catalyser/Diesel particulate filter corresponds to the numbered list below the illustration. For the 1 Series E87 120d, you can identify the RP diesel particulate filter by locating its position on the schematic, which then links to the official BMW part number 18307798309 for the Exhaust system section.
