Exhaust system, rear for BMW 5 Series E61 LCI 535d (2007)

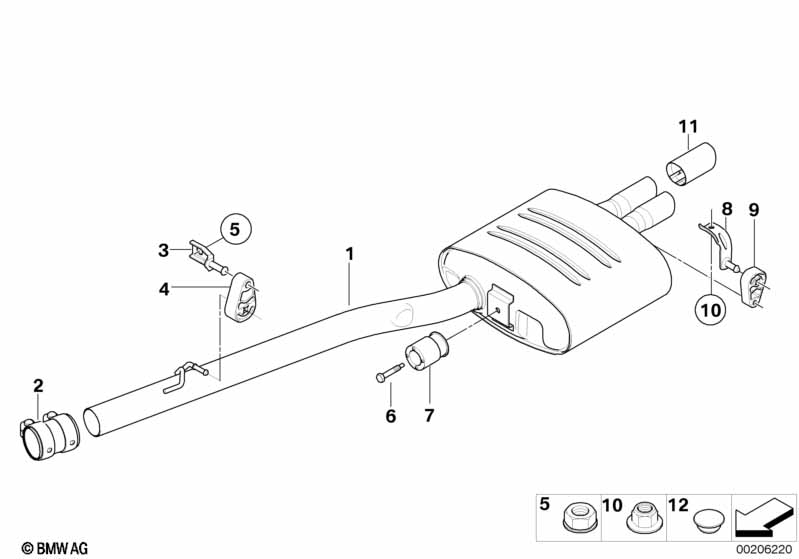

This Exhaust system, rear technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 LCI 535d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear muffler | 1 | 18307802892 | Shop at ECS Tuning | ||||||
| 02 | Clamping bush | D=80 X 90MM | 1 | 18307560815 | Shop at ECS Tuning | |||||
| 04 | Rubber Mounting | 1 | 18207578238 | $16.30 | Shop at ECS Tuning | |||||
| 06 | Collar screw | M8X70 | 1 | 18407540023 | $4.07 | Shop at ECS Tuning | ||||
| 07 | Vibration absorber | 32 HZ | 1 | 18303413587 | $54.00 | Shop at ECS Tuning | ||||
| 07 | Vibration absorber | 38 HZ | 1 | 18107808104 | Shop at ECS Tuning | |||||
| 08 | Bracket | 2 | 18307797507 | Shop at ECS Tuning | ||||||
| 09 | Rubber Mounting | 2 | 18207791570 | Shop at ECS Tuning | ||||||
| 10 | Collar nut | M8-8-SC-ZNNIV | 2 | 07119906089 | $0.32 | Shop at ECS Tuning | ||||
| 11 | Tailpipe tip, chrome | 2 | 18307536038 | $60.00 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E61 LCI 535d Exhaust system, rear?
- This technical diagram illustrates the Exhaust system, rear within the Exhaust system group for the 5 Series E61 LCI 535d produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the Rear muffler (Part #18307802892).
- Which models use the hardware listed in this Exhaust system, rear?
- The hardware and components featured in the Exhaust system, rear are specific to the 5 Series E61 LCI 535d produced during 2007. These technical specifications ensure that parts like the Rear muffler (18307802892) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Exhaust system, rear assembly?
- Each item in the Exhaust system, rear corresponds to the numbered list below the illustration. For the 5 Series E61 LCI 535d, you can identify the Rear muffler by locating its position on the schematic, which then links to the official BMW part number 18307802892 for the Exhaust system section.
