Engine Suspension for BMW 3 Series E46 330d (2002)

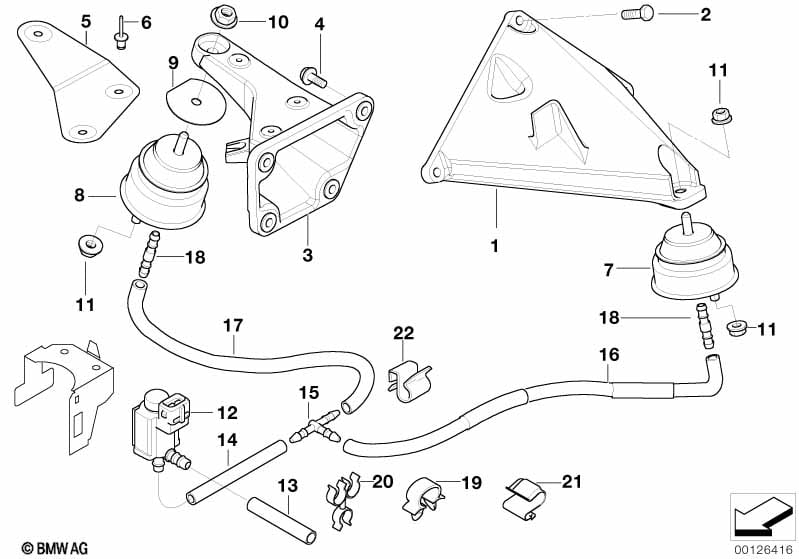

This Engine Suspension technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Engine support, left | 1 | 22116750107 | Shop at ECS Tuning | ||||||
| 02 | Hex bolt with washer | M8X26 | 3 | 07119902613 | Shop at ECS Tuning | |||||
| 03 | Engine support right | 1 | 22116750108 | Shop at ECS Tuning | ||||||
| 04 | Hex bolt with washer | M8X26-10.9-ZNS3 | 4 | 07119904092 | Shop at ECS Tuning | |||||
| 05 | Heat resistant plate | 1 | 22116750127 | Shop at ECS Tuning | ||||||
| 06 | Blind rivet | 5X10 | 3 | 11811139167 | $0.32 | Shop at ECS Tuning | ||||
| 07 | Engine mount | 1 | 22116773903 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Flange nut | M10 | 1 | 22116779973 | $0.68 | Shop at ECS Tuning | ||||
| -- | Hex bolt with washer | M8X45-10.9-ZNS3 | 2 | 22116850329 | Shop at ECS Tuning | |||||
| 08 | Engine mount | 1 | 22116773903 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Flange nut | M10 | 1 | 22116779973 | $0.68 | Shop at ECS Tuning | ||||
| -- | Hex bolt with washer | M8X45-10.9-ZNS3 | 2 | 22116850329 | Shop at ECS Tuning | |||||
| 10 | Flange nut | M10 | 2 | 22116779973 | $0.68 | Shop at ECS Tuning | ||||
| 11 | Flange nut | M10 | 2 | 22116779973 | $0.68 | Shop at ECS Tuning | ||||
| 12 | Electr.valve | 1 | 11747810831 | $46.70 | Shop at ECS Tuning | |||||
| 13 | Vacuum hose black | 3,5X1,8 | X | 11727545323 | $14.82 | Shop at ECS Tuning | ||||
| 14 | Vacuum hose red | 3,3X1,8 | X | 11747797050 | $17.32 | Shop at ECS Tuning | ||||
| 15 | T-Connector | 1 | 11731261489 | $0.56 | Shop at ECS Tuning | |||||
| 16 | Vacuum hose black | 3,5X1,8 | 1 | 11727545323 | $14.82 | Shop at ECS Tuning | ||||
| 17 | Vacuum hose | X | 22116772852 | Shop at ECS Tuning | ||||||
| 18 | Connection piece | D=4MM | 2 | 11151276486 | $1.08 | Shop at ECS Tuning | ||||
| 19 | Tubing support | D=10,8MM | 1 | 64111364073 | $0.57 | Shop at ECS Tuning | ||||
| 21 | Fixing clamp | 2 | 07149139223 | $0.18 | Shop at ECS Tuning | |||||
| 22 | Holder | 2 | 24511205837 | $0.43 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 330d Engine Suspension?
- This technical diagram illustrates the Engine Suspension within the Engine and Transmission Suspension group for the 3 Series E46 330d produced during 2002. It provides a detailed exploded view of the components, identifying key parts such as the Engine support, left (Part #22116750107).
- Which models use the hardware listed in this Engine Suspension?
- The hardware and components featured in the Engine Suspension are specific to the 3 Series E46 330d produced during 2002. These technical specifications ensure that parts like the Engine support, left (22116750107) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Engine Suspension assembly?
- Each item in the Engine Suspension corresponds to the numbered list below the illustration. For the 3 Series E46 330d, you can identify the Engine support, left by locating its position on the schematic, which then links to the official BMW part number 22116750107 for the Engine and Transmission Suspension section.
